Double-layer drum bag inserter
  • Double-layer drum bag inserter
< >

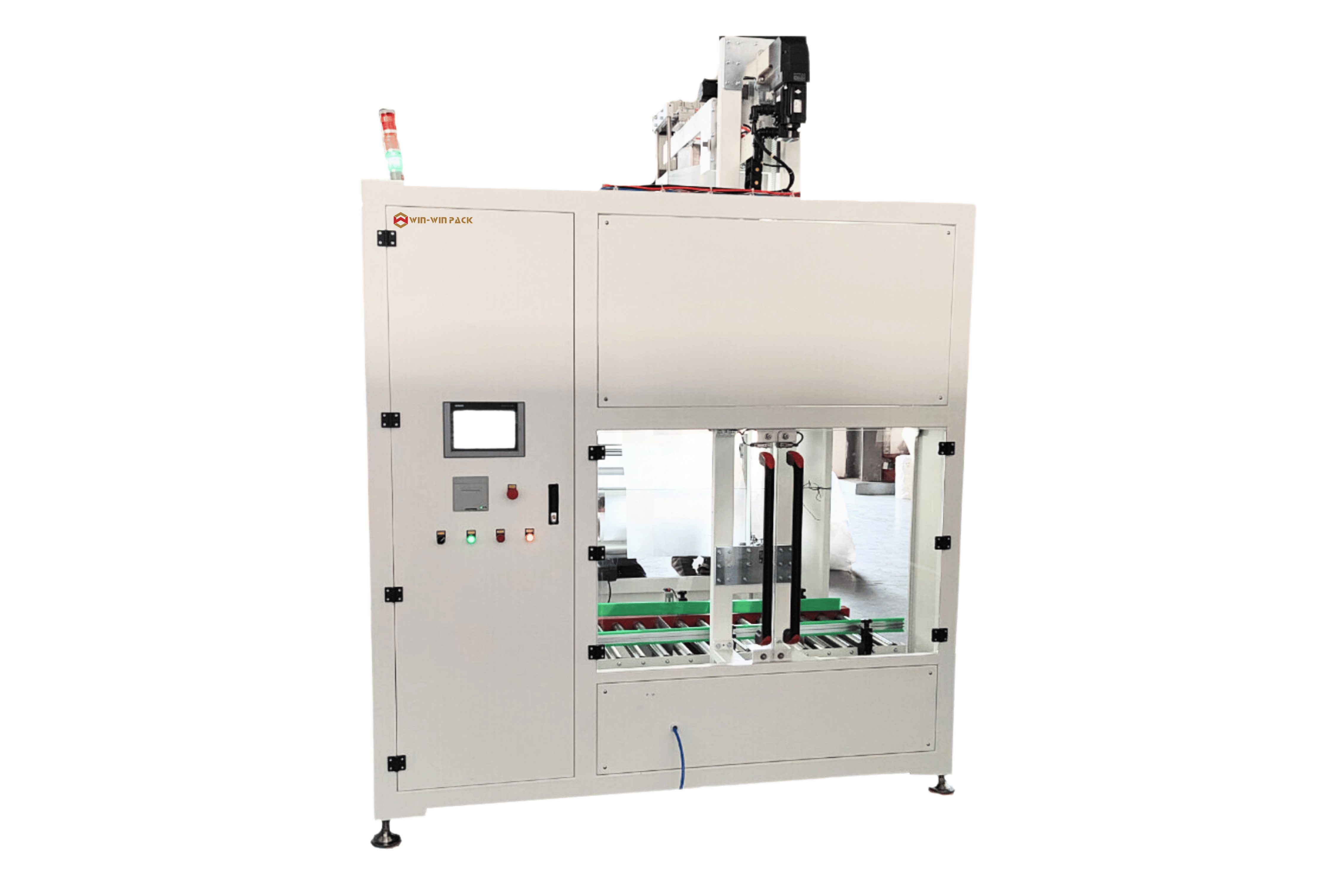

Double-layer drum bag inserter -- WWP-03BDD

Machine Model: WWP - 03BDD

Power: 380v 50Hz 6.5KW

Applicable Size: Φ300 - 350mm, Height 280 - 400mm

Box Sealing Speed: 3 - 6 barrels/minute

Tabletop Height: 650mm

Film Belt Width: M - type folded tube film

Gas Source Used: 6 - 7kg

Machine Size: 245016702150mm


Product description:

Features:

The drum bagging machine is a device that is specially used to put plastic bags inside the drum. It has high efficiency, strong stability, independent control panel, and one-button start.


This device uses forward bagging technology. First, the bag is opened with a clamp, and then the film is stretched by a mold customized according to the size. Then the film is pushed to the bottom of the drum and the bag mouth is turned over to the outside of the drum to complete the entire bagging process. For double-layer bags, the bagging process is repeated again.



This machine can greatly reduce the cost of labor, materials and use sites. It is simple to operate and easy to adjust. The bagging effect is much better than that of manual bagging. Used in conjunction with an assembly line, it can greatly improve efficiency and reduce manpower. It is suitable for packaging in various industries such as food raw materials, chemical raw materials, oil raw materials, and pharmaceutical raw materials.
