Double station drum bag sealing machine
Double station drum bag sealing machine
  • Double station drum bag sealing machine
  • Double station drum bag sealing machine
< >

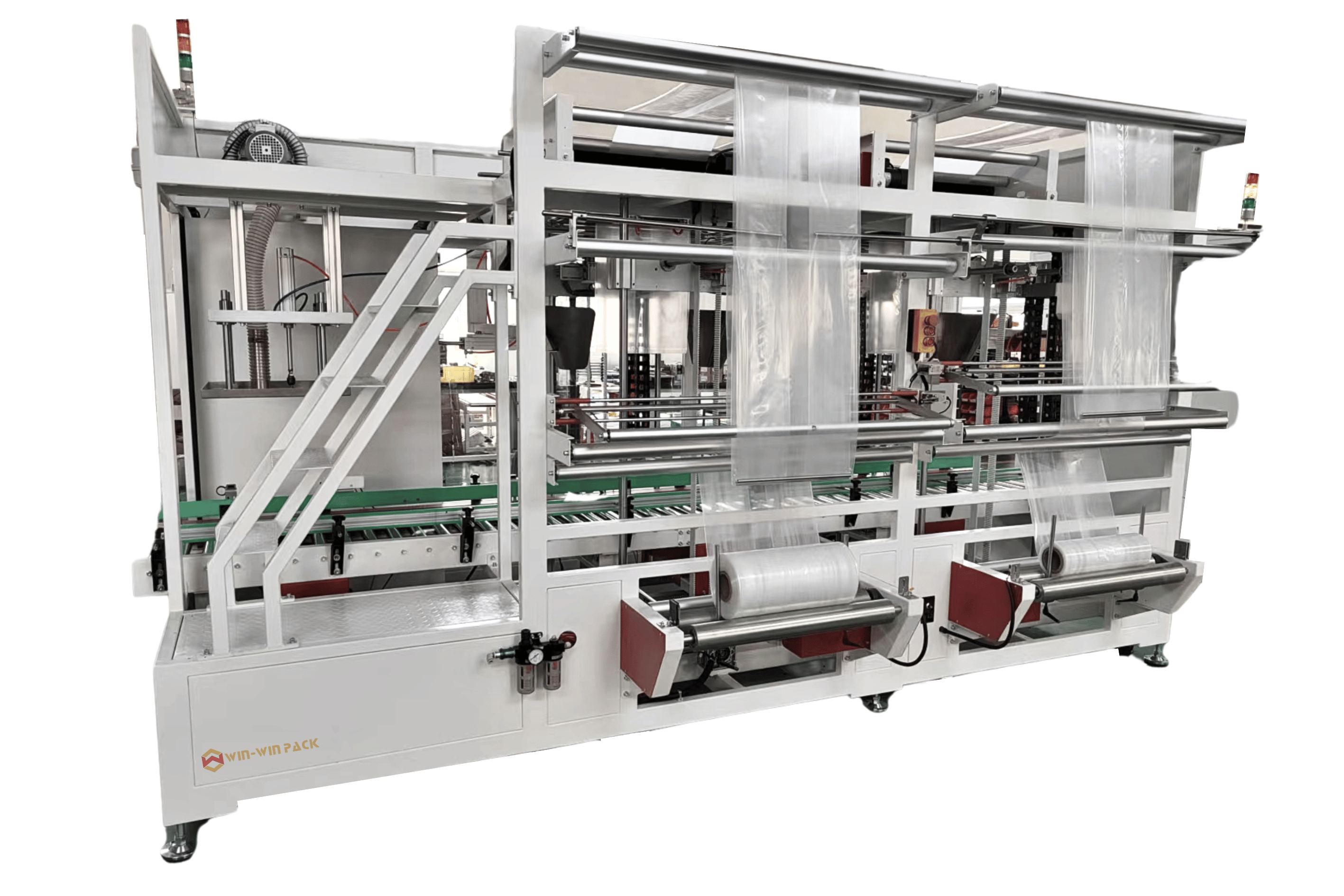

Double station drum bag sealing machine -- WWP-03BSD

 Technical Specifications:

Machine Model：WWP-03BSD

Power Supply：380V 50Hz 6.5KW

Applicable Size：Diameter: 300-350mm, Height: 350-500mm

Sealing Speed：7-8 barrels/minute

Table Height：650mm

Film Width：M-type folded roll film

Air Supply：6-7kg

Machine Dimensions：3950×1670×2250mm

Product description:

Scope of Application:

The automatic bag-inserting and sealing machine is independently developed and designed based on market demand. It can automatically open and align thin-film bags, fold covers, vacuum seal, fill with nitrogen, heat seal, and apply tie straps. The machine's operations are controlled by a combination of servo motors and cylinders, ensuring fast, stable performance, easy operation, and simple adjustments. When used in conjunction with an automatic case erector and packing machine, it significantly improves efficiency and reduces labor costs. It is suitable for packaging various food ingredients, chemical raw materials, and biological materials.


Features:
The equipment can be customized to meet explosion-proof, dust-proof, and other harsh environmental requirements.
The vacuum extraction, nitrogen filling, and re-vacuuming functions can be programmed according to requirements.

It can be integrated with upstream automatic packing and downstream automatic case sealing equipment.


Multiple bag insertion methods are available, including bag folding, vacuum extraction, and heat sealing, ensuring that external factors such as humidity or recycled cartons do not affect functionality, allowing proper placement into barrels (or boxes).
It can be paired with an automated production line, making it adaptable to various packaging methods.
Simple operation and easy adjustment.
