Tungsten powder barrel bag inserter -- WWP-03BTP

 Technical Specifications:

Machine Model: WWP-03BTP

Power Supply: 380V 50Hz 6.5KW

Applicable Barrel Size Φ290-350mm, Height: 280-400mm

Bagging Speed: 2-6 barrels/min (single or double-layer)

Table Height: 650mm

Film Type: M-type folded tubular film

Air Supply: 6-7kg

Machine Dimensions: 2250×1670×2050mm

Product description:

Features:

The Tungsten Powder Barrel Bagging Machine is a specialized device designed for lining the interior of iron barrels with plastic bags in the tungsten powder industry. It offers the option to insert either one or two layers of bags. The machine operates at an efficiency of 2-6 barrels per minute, depending on the number of bag layers used. It is highly stable, equipped with an independent control panel, and features one-touch start operation.


This machine adopts a forward bagging technology:
First, the clamping jaws pull and transport the plastic film to the top of the tungsten powder barrel.
Then, the bag-stretching mold expands and secures the film.

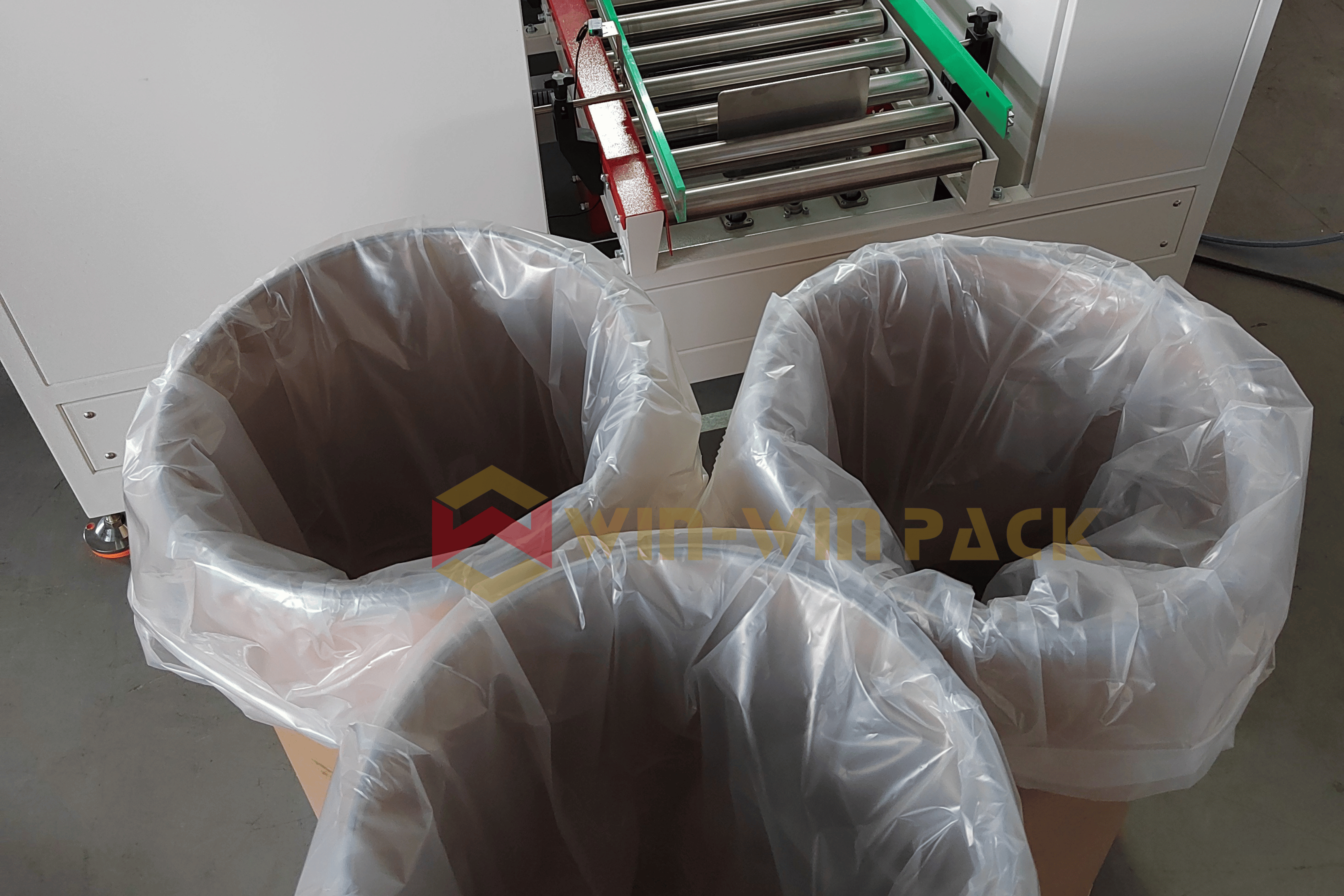

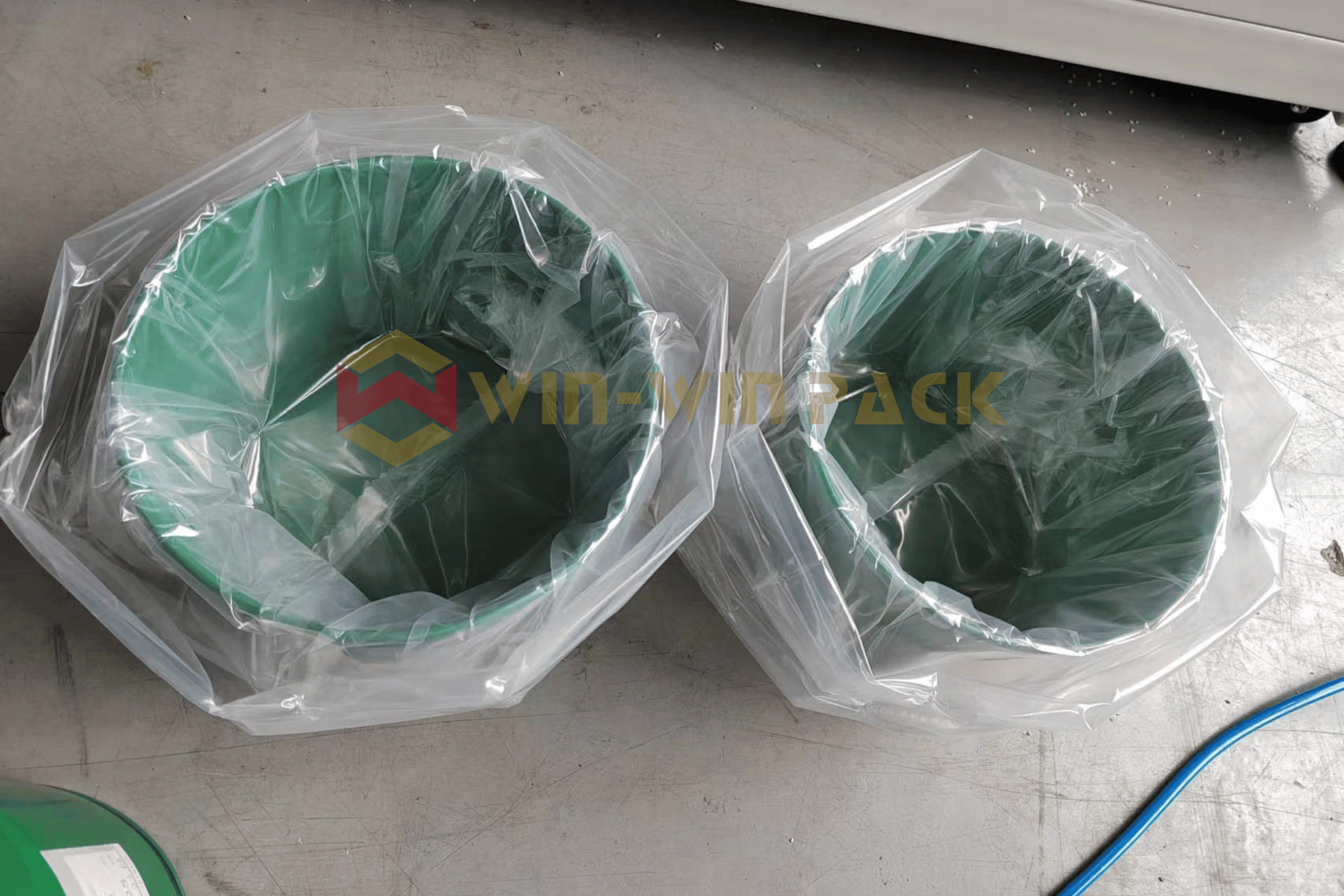

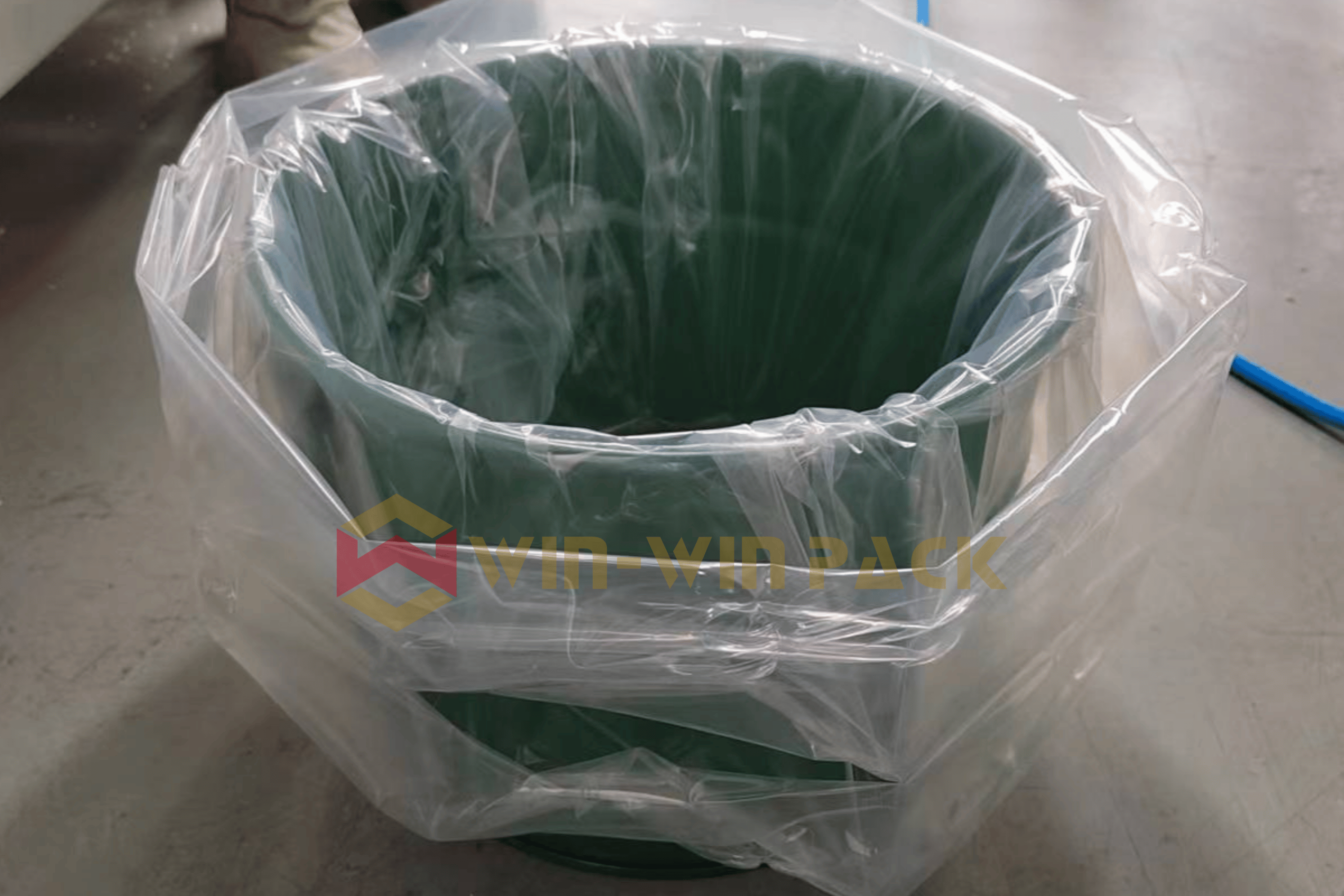

Finally, the film is inserted to the bottom of the barrel and folded over the outer rim.

It is a fully automatic bagging solution tailored for the powder metallurgy industry, with the flexibility to bag either one or two layers according to product or customer requirements.


This machine significantly reduces labor, material usage, and space costs. It is easy to operate, simple to adjust, and integrates seamlessly with production lines, greatly improving efficiency while minimizing labor input. It is suitable for packaging in various industries, including chemical raw materials, oil-based raw materials, pharmaceutical raw materials, and food ingredients.
