The WIN-WIN PACK carton erector WWP-945H15 has an unpacking capacity of 12-15 cartons per minute, which is a speed that other vertical carton erectors with sealing the bottom cannot achieve. Affordable carton packing machine from WIN-WIN PACK.

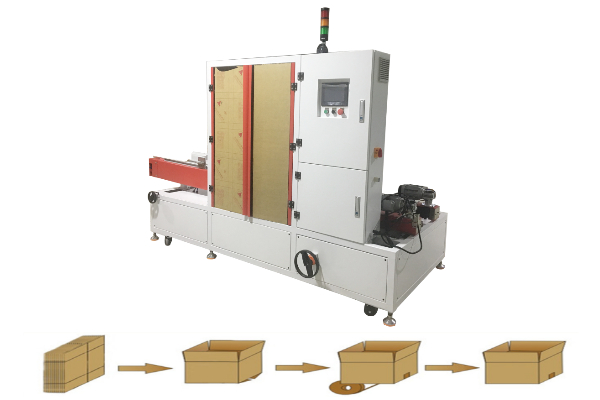

The machine adopts the straight-line vertical feeding, which not only effectively increases the storage capacity of the carton, but also reduces the floor space, and reduces the frequency and labor intensity of workers.It can automatically complete unpacking, automatically fold the lower cover, and automatically seal the bottom of the carton, and adopts PLC+ human-machine interface control. It is easy to operate, simple to maintain and stable in performance.
Since its successful research and development, it has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries. It can be said that it is an indispensable assembly line equipment for automated large-scale production.
| Item | Specification | Memo |
|---|---|---|
| Model | WWP-945H15 | |
| Forming and Sealing Speed | 12–15 ctns/min | |
| Power Supply | 220V / 380V, 50Hz | |
| Air Compressing | 0.6–0.8 MPa | |
| Adhesive Tape Width | 48 / 60 / 72 mm (Choose one size) | |
| Table Height | 500 ± 50 mm | Can be customized as required |
| Machine Size | L3300 × W1100 × H1900 mm | Non-standard customization based on actual |
| Machine Weight | 350 kg | Non-standard customization based on actual |
| Carton Size | L220–450 × W150–400 × H110–350 mm |
