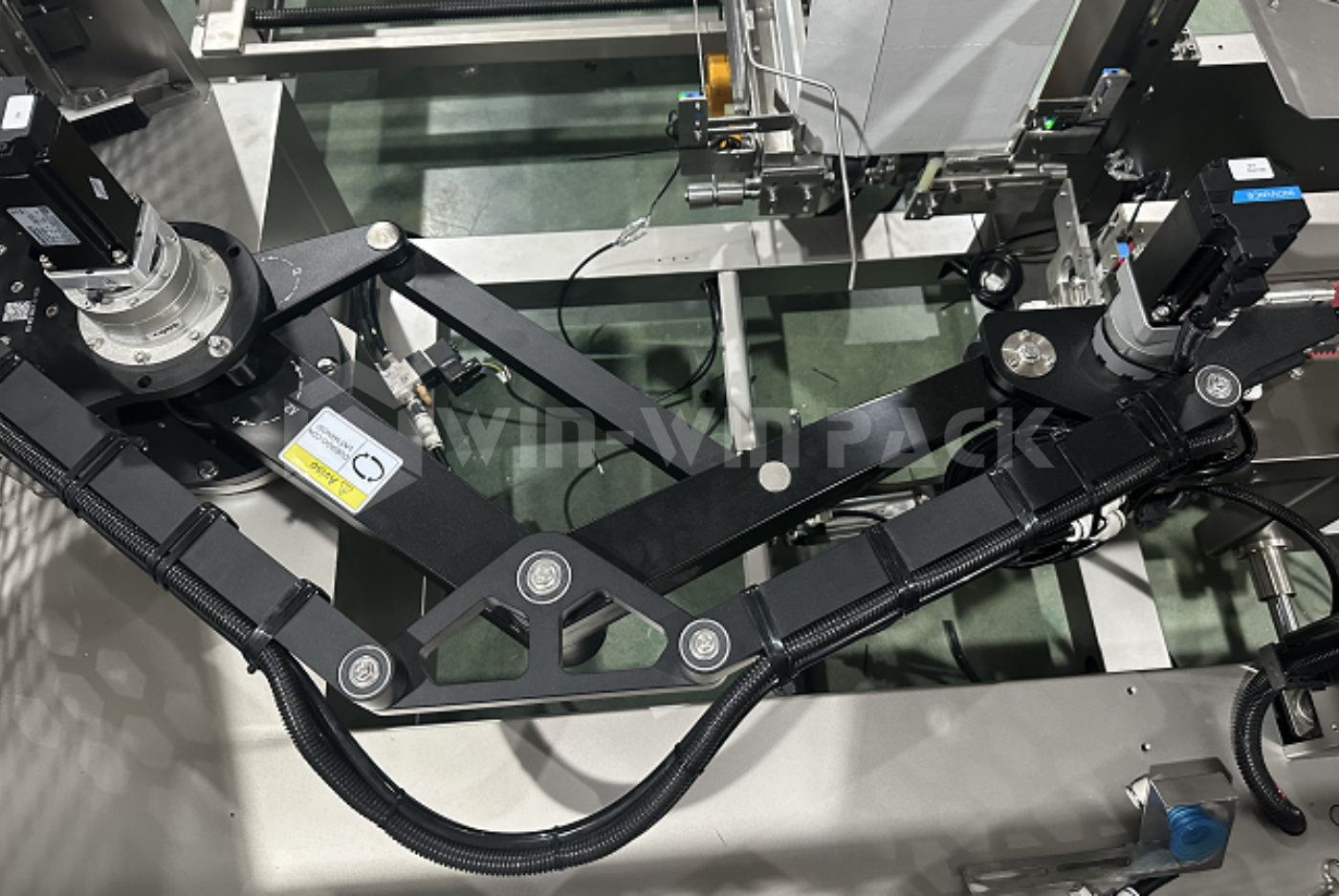

Vertical Robot Arm Servo Carton Erector

< >

Parameter	WWP-S400	WWP-S500	WWP-S650
Machine Speed	5–30 ctns/min	5–30 ctns/min	5–25 ctns/min
Carton Storage Quantity	100 pcs (1000 mm)	100 pcs (1000 mm)	100 pcs (1000 mm)
Carton Size	L145–400 × W85–350 × H105–350 mm (Requirement: 240 ≤ H + W/2 < 560; 210 ≤ L + W ≤ 705) Actual: L280–500 × W150–400 × H150–400 mm	L145–400 × W85–350 × H105–350 mm (Requirement: 240 ≤ H + W/2 < 560; 335 ≤ L + W ≤ 870) Actual: L280–650 × W180–500 × H150–500 mm	L145–400 × W85–350 × H105–350 mm (Requirement: 240 ≤ H + W/2 < 710; 435 ≤ L + W ≤ 1120)
Power Supply	220V, 50Hz, 1 Phase	220V, 50Hz, 1 Phase	220V, 50Hz, 1 Phase
Air Pressure Supply	0.6–0.7 MPa	0.6–0.7 MPa	0.6–0.7 MPa
Power	2500 W	2500 W	2500 W
Applicable Tape	36–50 mm	36–60 mm	36–60 mm
Tape Diameter	Below 250 mm	Below 250 mm	Below 250 mm
Machine Size (L×W×H)	2400 × 2000 × 1400 mm	2600 × 2000 × 1400 mm	2920 × 2100 × 1550 mm
Machine Weight	450 kg	620 kg	900 kg

Note: The machine speed needs to take into account the quality and size of the carton.
