Standard Components |
Brand / Material |
|
Relay / Contactor |
Schneider / Chint |
|
Contactor |
Schneider / Chint |
|
Motor |
Taiwan GPG |
|
Push Button Switch |
Siemens APT / Chint |
|
Pneumatic Components |
AirTac |
|
Tape Cutting Blade |
Tungsten Steel W6 |

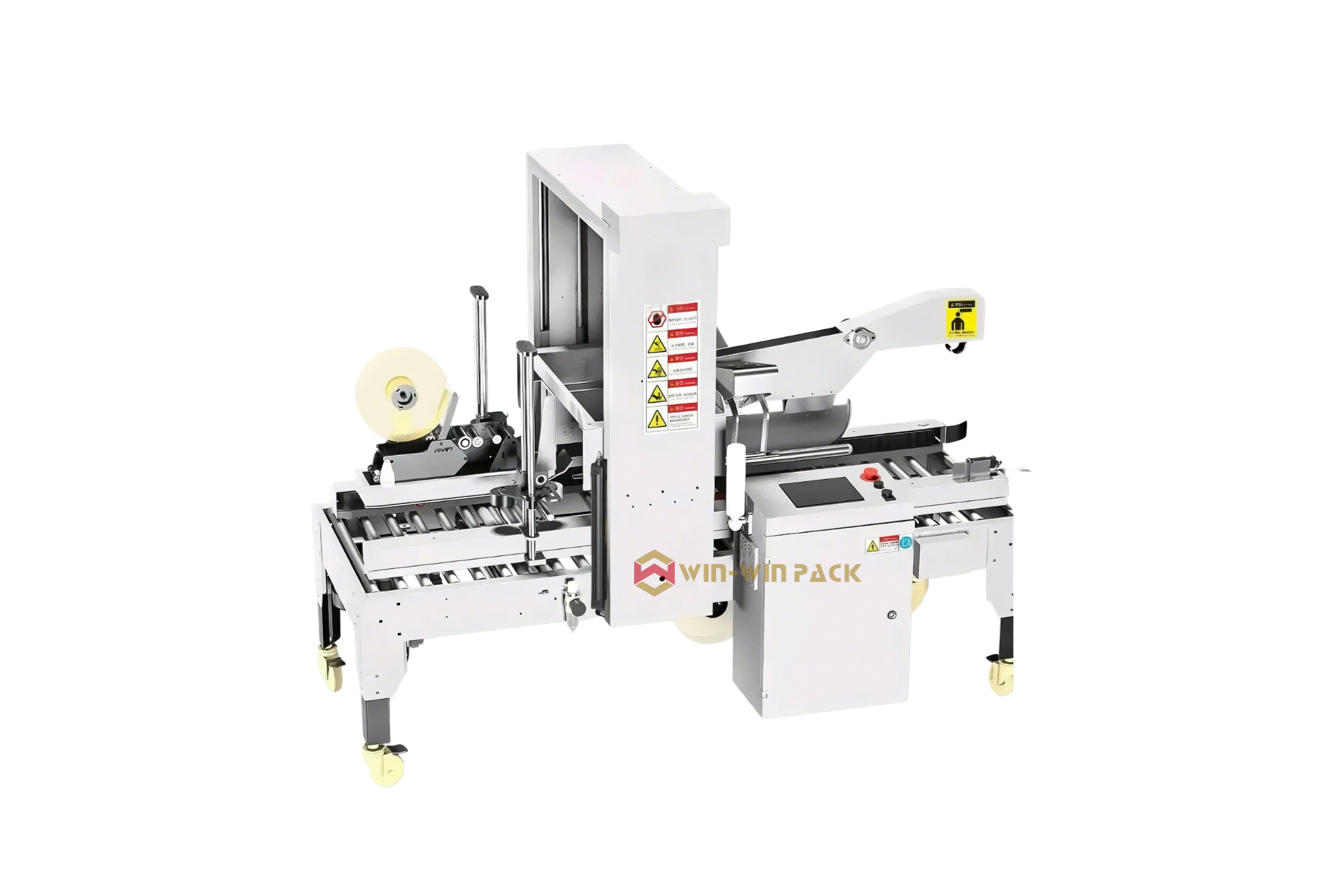

| Model | WWP-850 |
|---|---|
| Conveyor Speed / Packing Speed | 20 m/min / 5 cartons per min |
| Packing Size (L × W × H) | 150 ≤ L ≤ ∞ mm130 ≤ W ≤ 500 mm130 ≤ H ≤ 500 mm |
| Power Supply | AC 220V, 50/60Hz, 1 Phase |
| Working Air Pressure | 6 kgf/cm² |
| Power | 200 W |
| Table Height | 450 / 600 / 750 mm (customizable) |
| Adhesive Tape Width | 36 – 72 mm |
| Machine Dimension (L × W × H) | 1160 × 980 × 1330 mm |
| Machine Weight | 180 kg |
Imported electrical and pneumatic components.
Automatically adjusts height and width to accommodate different carton sizes.
Pneumatic control system offers simplicity and reliability compared with complex electrical control systems.
Side belts driven; seals both top and bottom of cartons.
Cutter safety system prevents operator injury during maintenance.
Available in steel or stainless steel construction.
Universal design suitable for sealing various types of cartons.
Can operate independently or be integrated with a corner side carton sealer or strapping machine.
Machine color can be customized according to user requirements.
All components in contact with cartons are made of stainless steel.
