Fully Automatic Servo Cartoning Machine

Main Parameters:

Power Supply: 220V/50Hz

Power: 6-8Kw

Production Speed: Approximately 60-70 boxes/min


Applicable Carton Size:

Length (L): 100-180mm

Width (W): 60-120mm

Height (H): 40-80mm


Weight: Approximately 1.2T

Carton Requirements: Crease depth of 0.4mm with pre-folded effect; cartons that cannot be manually formed cannot be opened by the machine.

Product description:

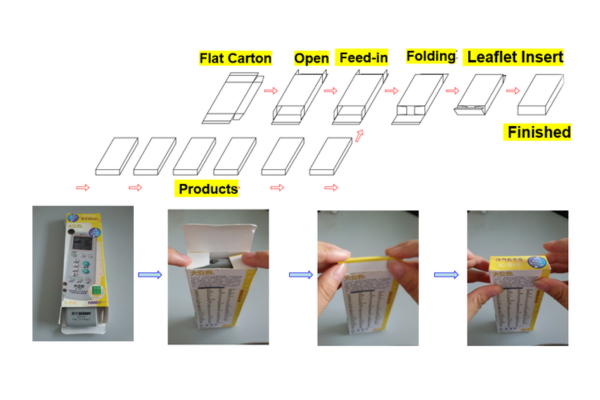

This machine integrates automatic carton opening, product pushing, ear folding, leaflet folding, and carton sealing into one unit. It is suitable for packaging various types and sizes of cartons. Controlled by a PLC microcomputer, it features automatic alarms and fault notifications. With a user-friendly interface, it is easy to operate and maintain. The carton sealing system performs tasks such as carton opening, product pushing, ear folding, leaflet folding, and sealing automatically, without manual intervention. All parts of the machine in contact with the cartons are made of high-quality stainless steel and aluminum, with polished surfaces for a sleek and elegant appearance, ensuring no environmental contamination.


Performance Features

Equipped with PLC microcomputer for fully automatic control.
Utilizes a user-friendly human-machine interface to display performance parameters such as cartoning speed, quantity, and fault causes automatically.
Features a self-lubricating system for smoother operation.
Constructed with high-quality stainless steel, combined with baked paint and aluminum materials.
Allows multi-specification adjustments within the defined range on the same equipment.
Supports manual and automatic mode switching.
Can be equipped with a hot melt glue system.
