Yogurt Wrap Around Cartoning Machine -- WWP-60GB

< >

Yogurt Wrap Around Cartoning Machine -- WWP-60GB

Model: WWP-60GB

Capacity: 30-60 cartons/min (able to be custom-made for double-lane machine)

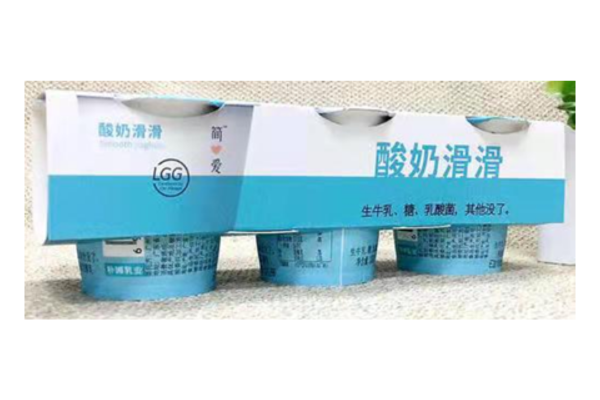

Suitable Product: Milk, jelly, and other cup-type packaging

Product Size: Based on real samples

Compressed Air: 0.6-0.8 MPa

Voltage: 220V/50HZ

Air Consumption: 200-260 L/min

Function of Machine: Cardboard overwrap (by hot glue)

Dimension of Machine: L2750MM * W1300MM * H1700MM

Product description:

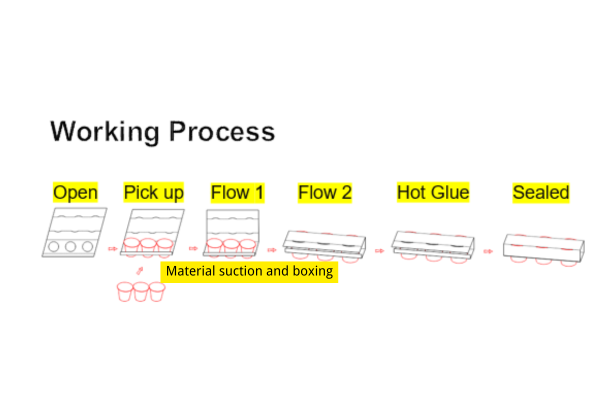

This machine integrates automatic carton opening, product pushing, ear folding, leaflet folding, and carton sealing into one unit. It is suitable for packaging various types and sizes of cartons. Controlled by a PLC microcomputer, it features automatic alarms and fault notifications. With a user-friendly interface, it is easy to operate and maintain. The carton sealing system performs tasks such as carton opening, product pushing, ear folding, leaflet folding, and sealing automatically, without manual intervention. All parts of the machine in contact with the cartons are made of high-quality stainless steel and aluminum, with polished surfaces for a sleek and elegant appearance, ensuring no environmental contamination.

Performance Features

Equipped with PLC microcomputer for fully automatic control.
Utilizes a user-friendly human-machine interface to display performance parameters such as cartoning speed, quantity, and fault causes automatically.
Features a self-lubricating system for smoother operation.
Constructed with high-quality stainless steel, combined with baked paint and aluminum materials.
Allows multi-specification adjustments within the defined range on the same equipment.
Supports manual and automatic mode switching.
Can be equipped with a hot melt glue system.
