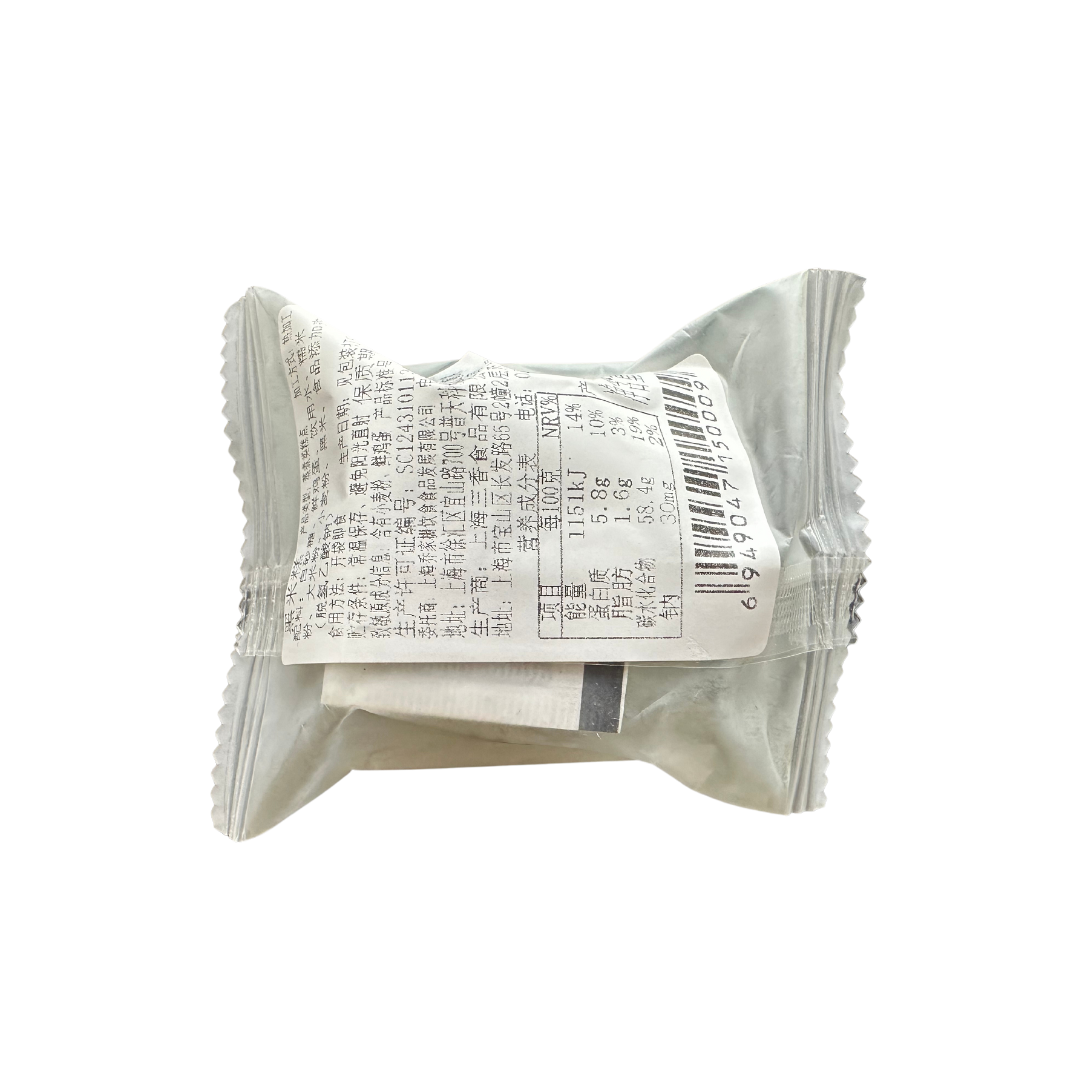

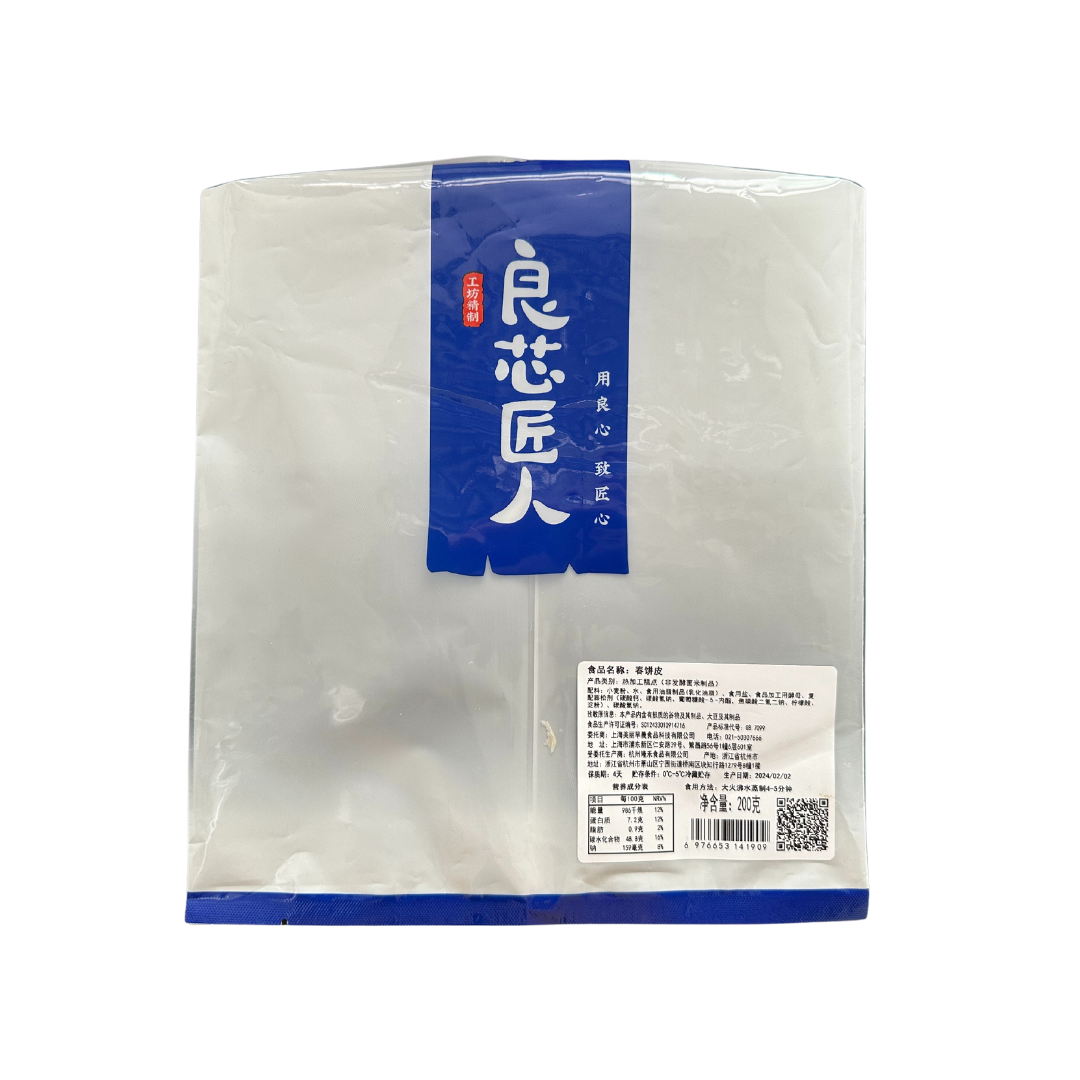

bag labeling

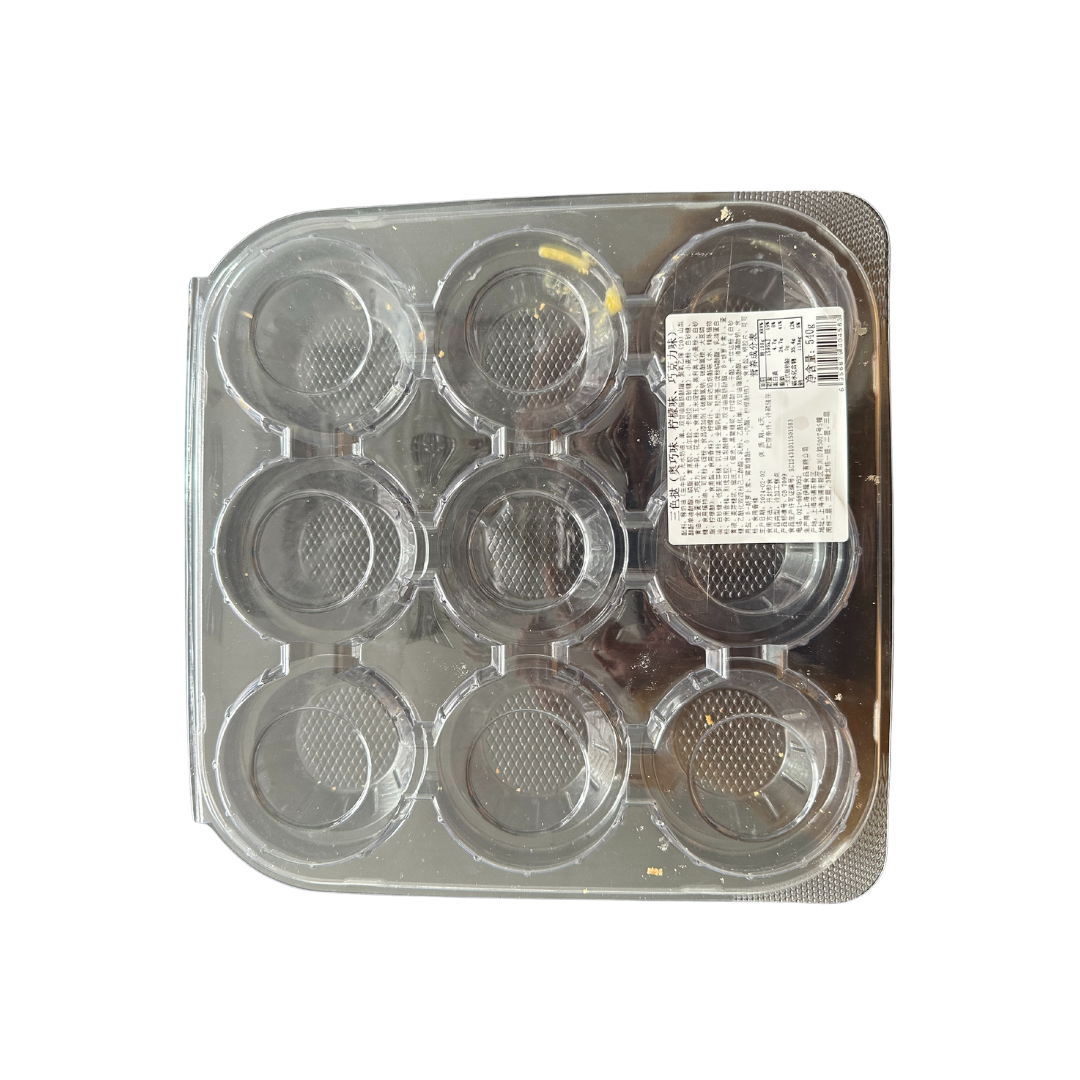

tray labeling

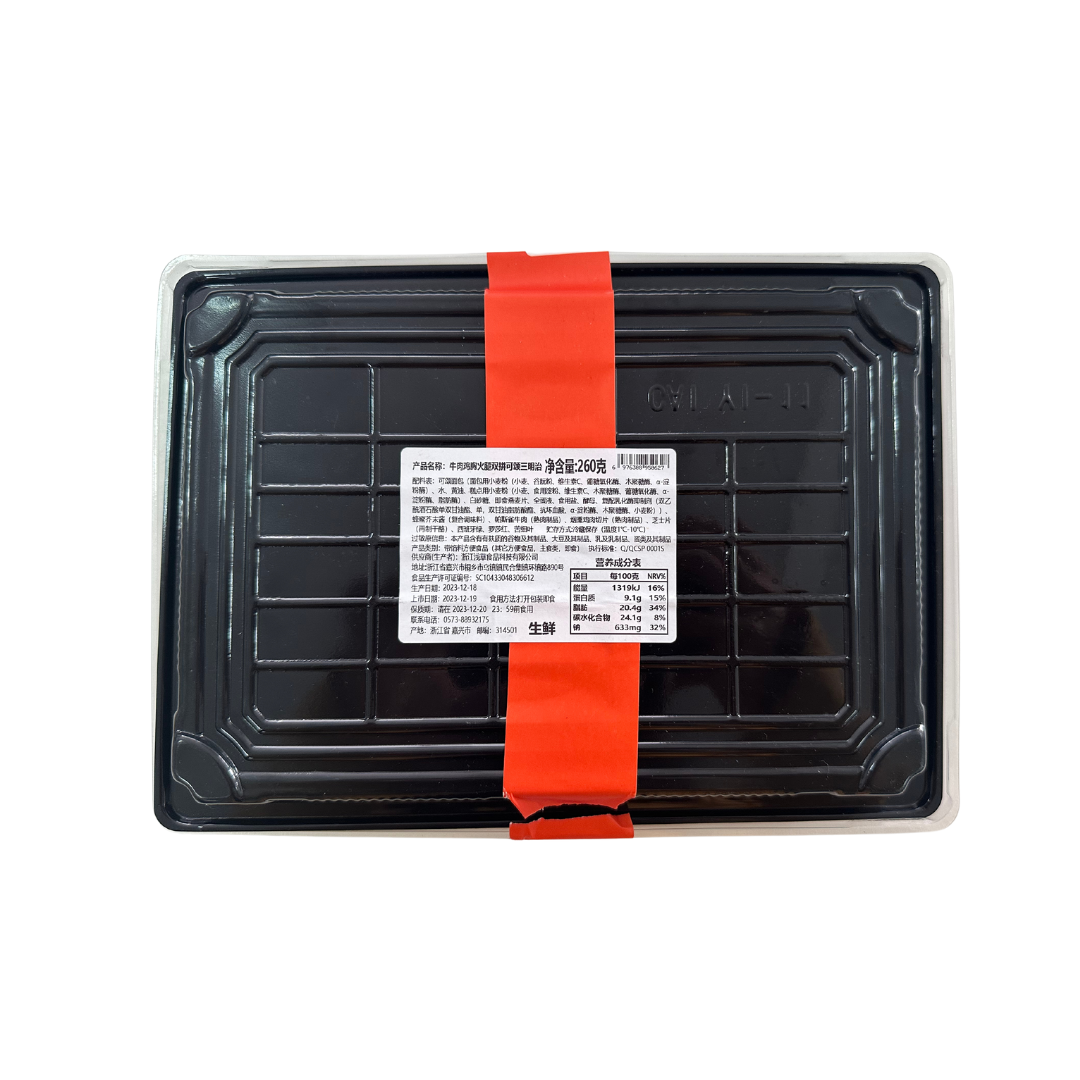

plastic box labeling
irregular bag labeling machine

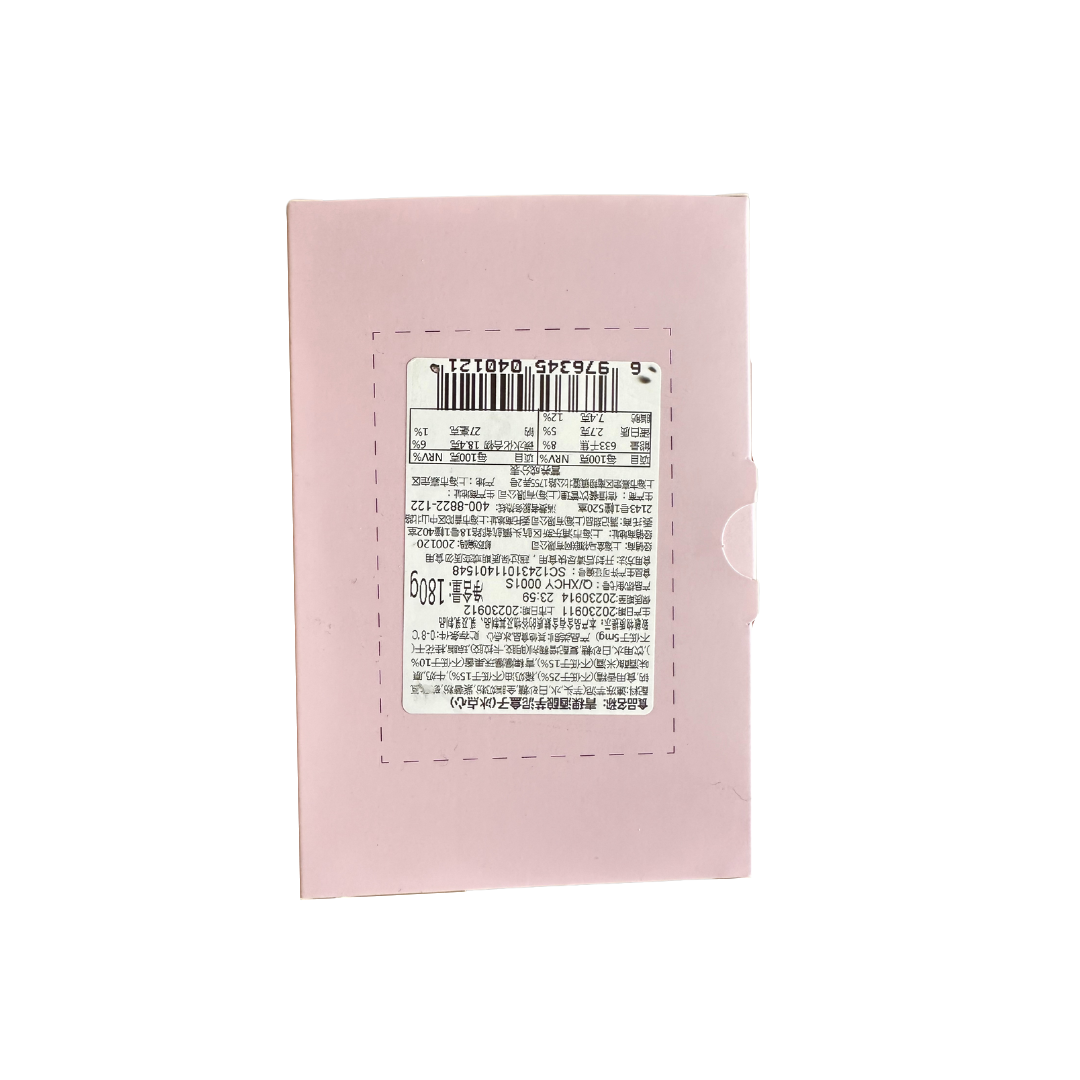

box labeling
  • real-time printing and labeling machine
  • real-time printing and labeling machine
  • bag labeling
  • tray labeling
  • plastic box labeling
  • irregular bag labeling machine
  • box labeling
< >

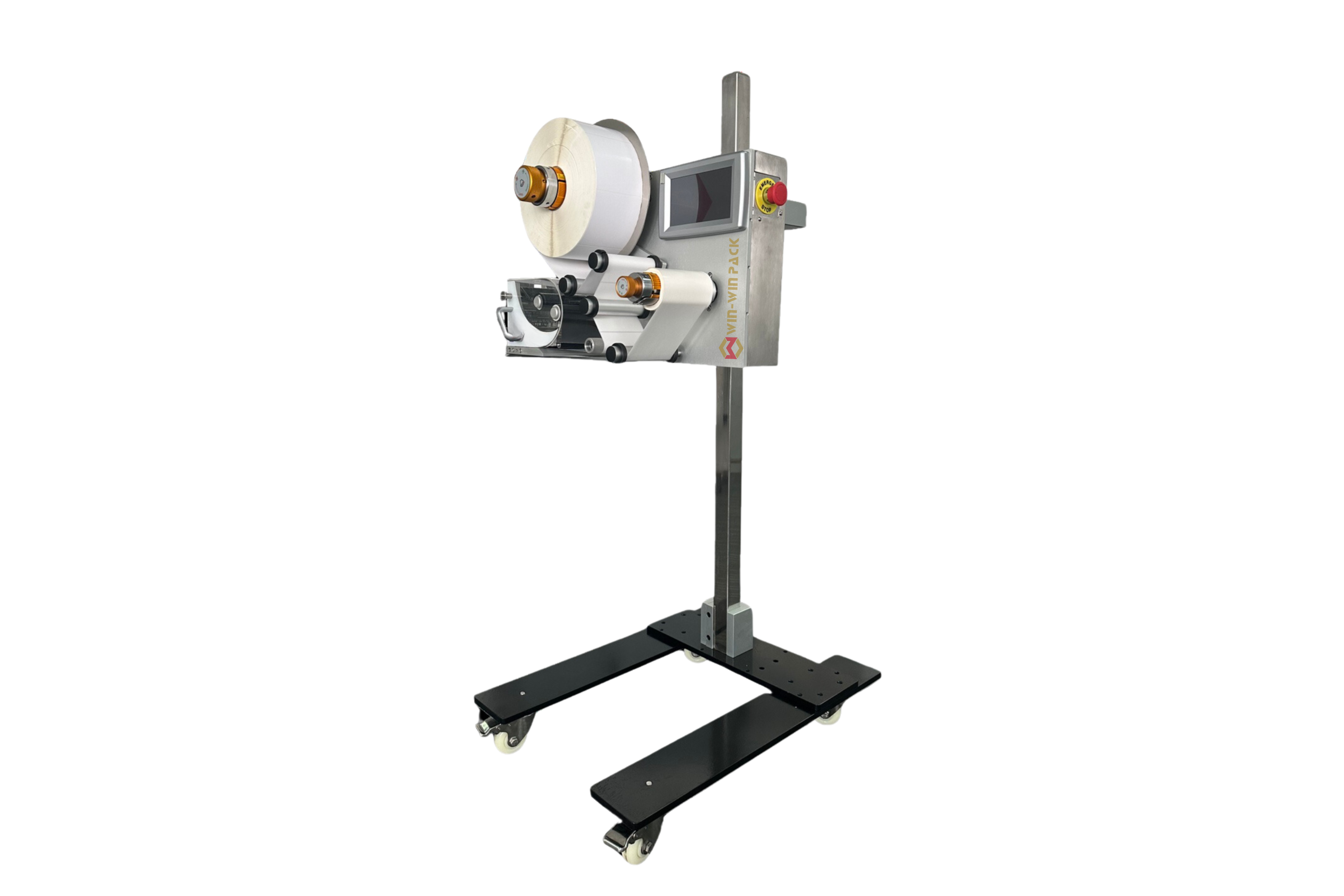

Intelligent Real-time Printing and Labeling Machine with High Speed -- WWP-H8000


  1. Compact structure, small footprint, convenient for equipment movement and placement.
  2. Design a special label control system to increase labeling speed by 50% compared to traditional printing engines and improve labeling accuracy at the same time.
  3. There are various labeling methods, the machine can print one and paste one, or print two and paste one, for meet different application occasions.
  4. The 7-inch color touch screen has built-in label design software, the user can edit and modify it directly on the screen, enter the product size and label size, and the machine can automatically adjust the labeling position



Related articles, click to read:

Labeling Machine -- How Does the Labeling Machine Save Ribbon and Label Paper?

Product description:

WWP-H8000 intelligent real-time printing and labeling machine is a machine that integrates printing and labeling. It is very suitable for integrating production line online printing and labeling on the surfaces of various boxed products, film packaging products, outer packaging cartons and other products. It also The product can be weighed one by one and can be printed and taped. The whole machine is controlled by a touch screen and the CPU automatically calculates the position of each action of the machine without manual adjustment. Widely used in food, medicine, tobacco, daily chemicals, pesticides, beverages, auto parts, electronic appliances and other industries.


Model

H8130

H8140

Print area

80mm x220mm

107 mmx 220mm

Print head

80mm, 300DP1

107mm, 300DP1

Printing speed

Up to 250mm/s

Frequency of posting

Up to 120 times/minute (depending on the label length and labeling mechanism)

Ribbon specifications

83mmx600M

110mmx600M

Software interface

RS232 standard industrial serial port communication, network communication; USB2.0 interface; can realize real-time data transmission

Hardware interface

Input: printing trigger, synchronizer, labeling trigger, etc.

Output: It can output the printing and labeling completion signal, and can realize the signal output linkage of warning status and fault status, lighthouse, etc.

User interface



Multiple labeling method options

System self-diagnosis function, operation prompt function, etc.

Warning and fault information display, print preview function

Self-diagnosis function, print file rotation, multi-language selection

Standard 7-inch color touch screen, built-in online template editing software

Print function

Real time, date, offset date printing

Different font selections, support Windows True Type fonts, support graphics, Chinese printing, serial numbers, user-defined text printing

Standard network interface, USB communication interface, RS232 standard industrial serial port communication, can be directly controlled by computer

Label diameter

Maximum 280mm

label width

50~115mm

Labeling speed

0~30m/minute

Labeling method

Brushing/pressing (can also be customized according to customer requirements)

Machine weight

About 40 kg (only the printing and labeling host part, excluding the labeling mechanism)

Machine size

Length 550mmx Height 470mmx Thickness 310mm

Electrical requirements

Power input 90VAC~240VAC 50/60Hz 500W

Working environment

Temperature: 0~40°C Humidity: 0~90%
