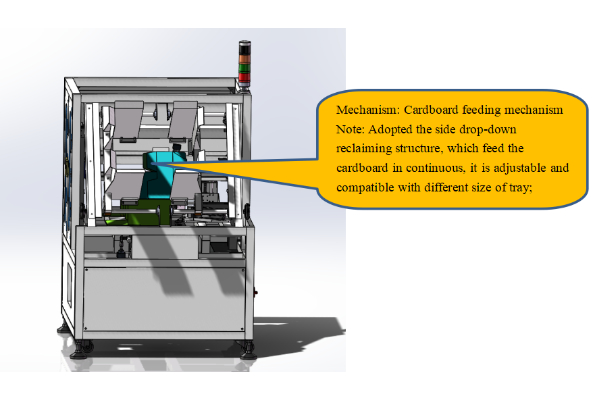

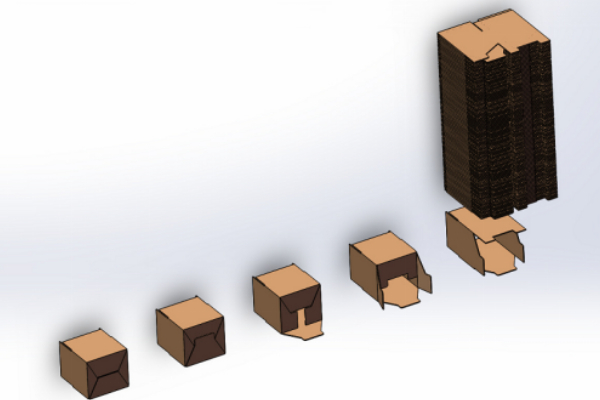

This is a small box closer, which is pneumatically controlled. The cardboard is pulled down at the specified position through the reclaiming suction cup and formed. The box flap automatically locks the cardboard, so that the cardboard does not need adhesive tape or hot melt adhesive for forming. Finally, the cardboard is folded into a box shape, which is convenient for manual direct loading products, so as to save manual work. The machine has the advantages of simple operation, convenient adjustment, stability and durability. Affordable carton packing machine from WIN-WIN PACK.
1. It is manufactured with brand-new technology, and imported parts, electrical components and pneumatic components are selected.
2. The whole machine adopts PLC control system, with accurate, stable and durable mechanical operation.
3. Simple operation, easy adjustment and no doubt of damage to the carton.
4. Boxes are stored horizontally, and empty cartons can be replenished at any time without shutdown.

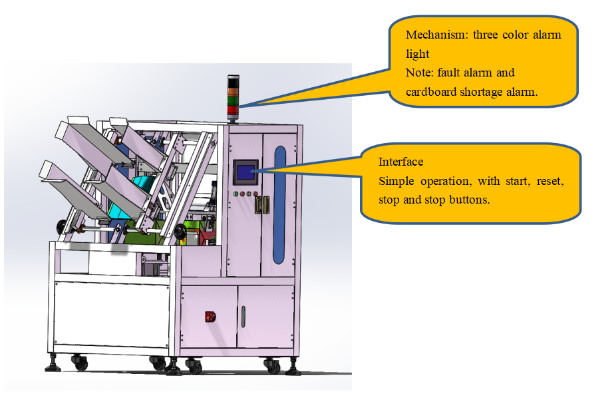

5. Automatic early warning reminder to replenish boxes.
6. It can be used alone or in combination with automatic packaging line.
Technical parameter:
Model | WWP-610 |
Power supply | 220V 50Hz |
Box size | Can be customized |
Machine speed | 8 ~ 12 pcs/min |
Air supply | 700NL/min、0.6-0.8Mpa |
Machine dimension | L1350×W1320×H1650mm（For your reference only） |
Machine weight | 450kg |
