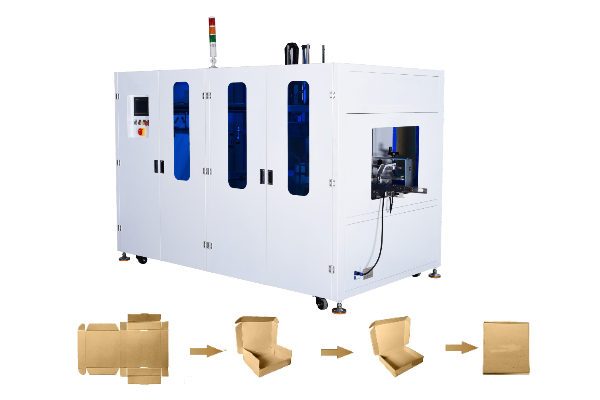

The WIN-WIN PACK WWP-630, Automatic Servo Tray Former, adopts two sets of servo and PLC control, which is more stable and fast. The cardboard is automatically folded and formed through an adjustable size mold. Then the paper flaps are automatically locked to the cardboard, so that the cardboard can be formed without tape or hot melt adhesive bonding. Finally, the cardboard can be folded into the shape of a carton, which facilitates the direct loading of the product manually, thereby eliminating the need for manual opening of the box and the laborious and repetitive work.
The machine is easy to operate, easy to adjust, stable and durable, and can be widely used in electrical appliances, toys, food, online products, clothing, automotive supplies and other industries. Affordable carton packing machine from WIN-WIN PACK.
Technical Parameters：
Model | WWP-630 |
Machine Speed | 12-15pcs/min |
Box Size | L365*W260*H60（Can be customized） |
Air Consumption | 450NL/min |
Power Supply | 220v 50Hz |
Air compressing | 6kg/cm2 |
Machine Dimensions | L1900*W1500*H1800mm |
Weight | 550kg |
