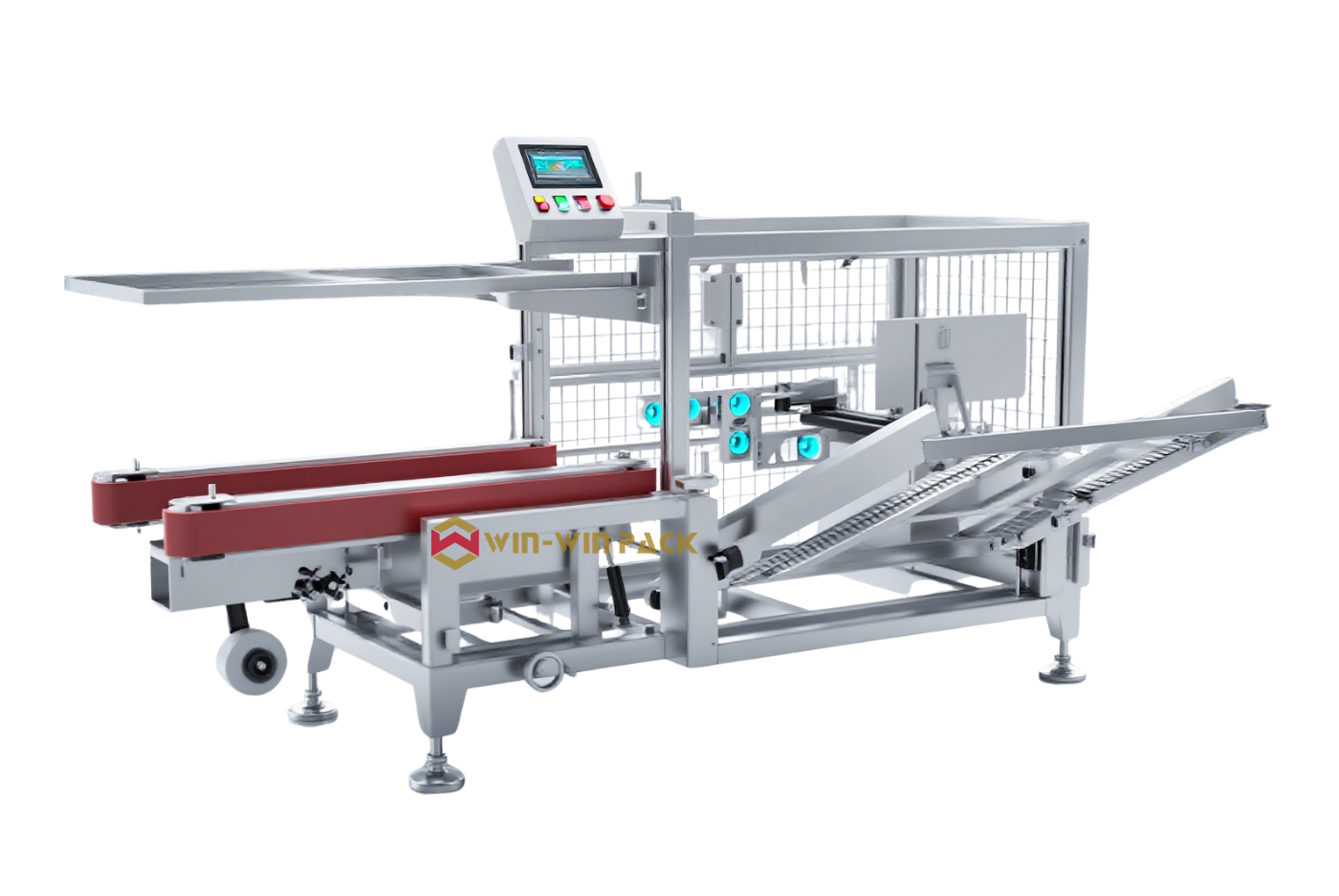

An efficient automated machine designed for rapid carton forming of various sizes.
Features a simple structure and easy operation for smooth production workflow.
Capable of erecting up to 18 cases per minute, depending on carton size and quality.
Equipped with an inclined carton magazine
Supports standard tape sealing
Ideal for automated packaging lines in:
Food industry
Daily chemical products
Pharmaceutical industry
Electronics industry
| Machine Model | Two-Axis Robotic Carton Erector EWWP-500 |
|---|---|
| Case Erecting Speed (case/min) | ≤18 (depending on carton size and quality) |
| Carton Size Range (mm) | Length L: 280–500Width W: 150–400Height H: 150–400 |
| Total Power (kW) | 1.5 |
| Air Pressure Supply (MPa) | 0.6–0.7 |
| Machine Net Weight (kg) | 400 |
| Machine Dimensions (L×W×H, mm) | 2600 × 2000 × 1500 |
| Power Supply | 220V 1PH 50Hz |
| Tape Width (mm) | ≤60 |
| Tape Diameter (mm) | ≤250 |
| Color | Matte Silver |
| Carton Magazine Type | Inclined Magazine |
| Carton Erecting Speed Range | 5–18 cases/min |
