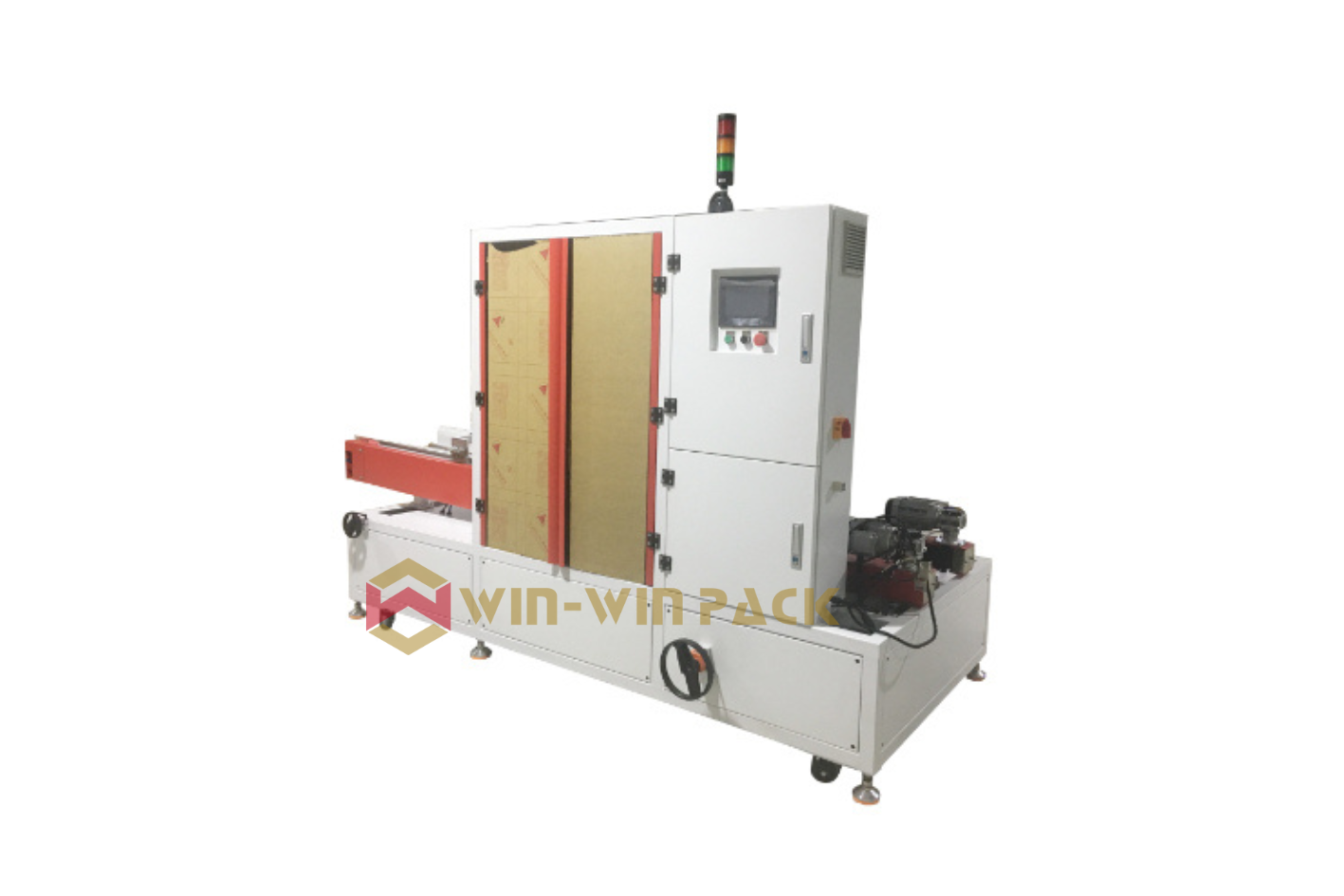

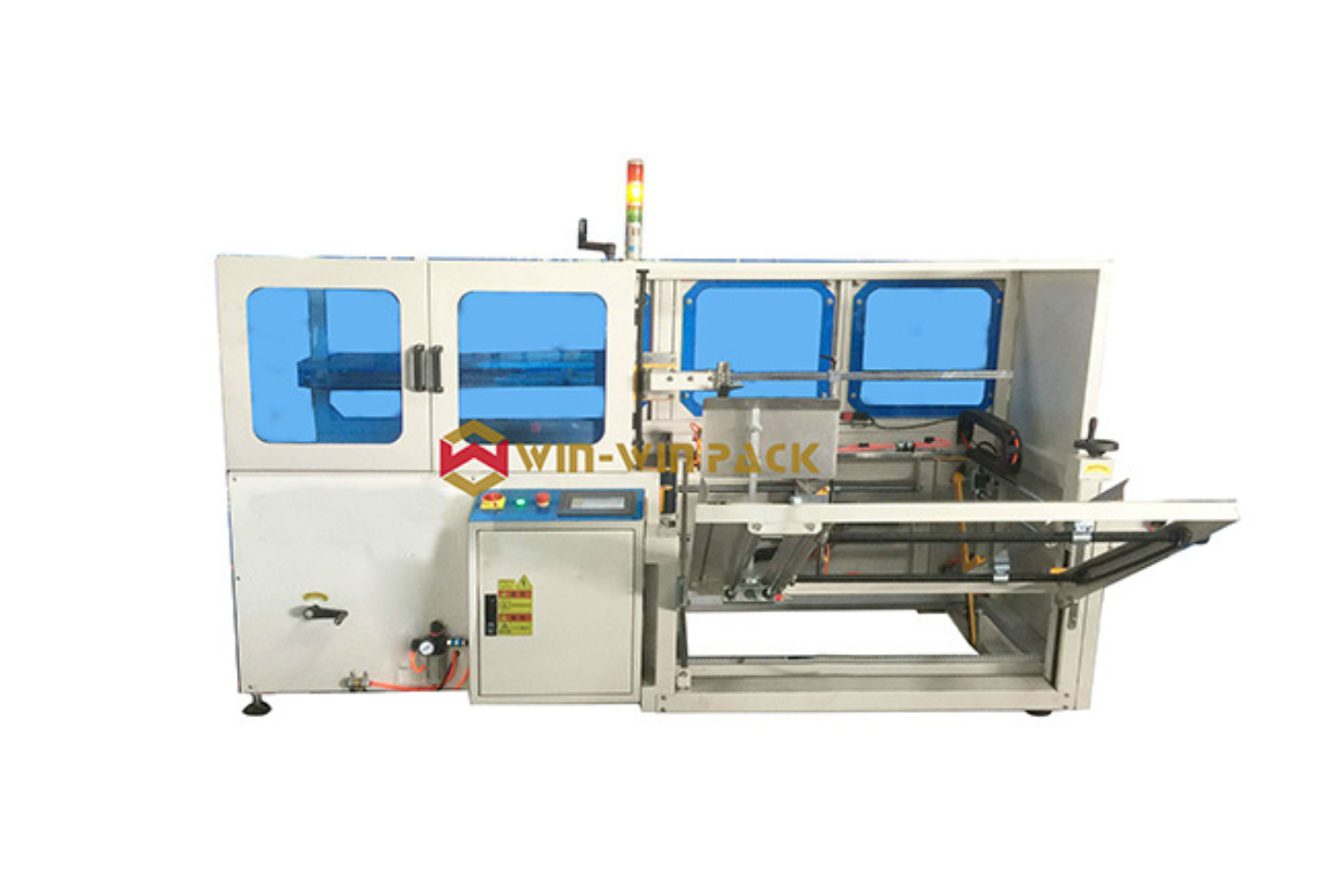

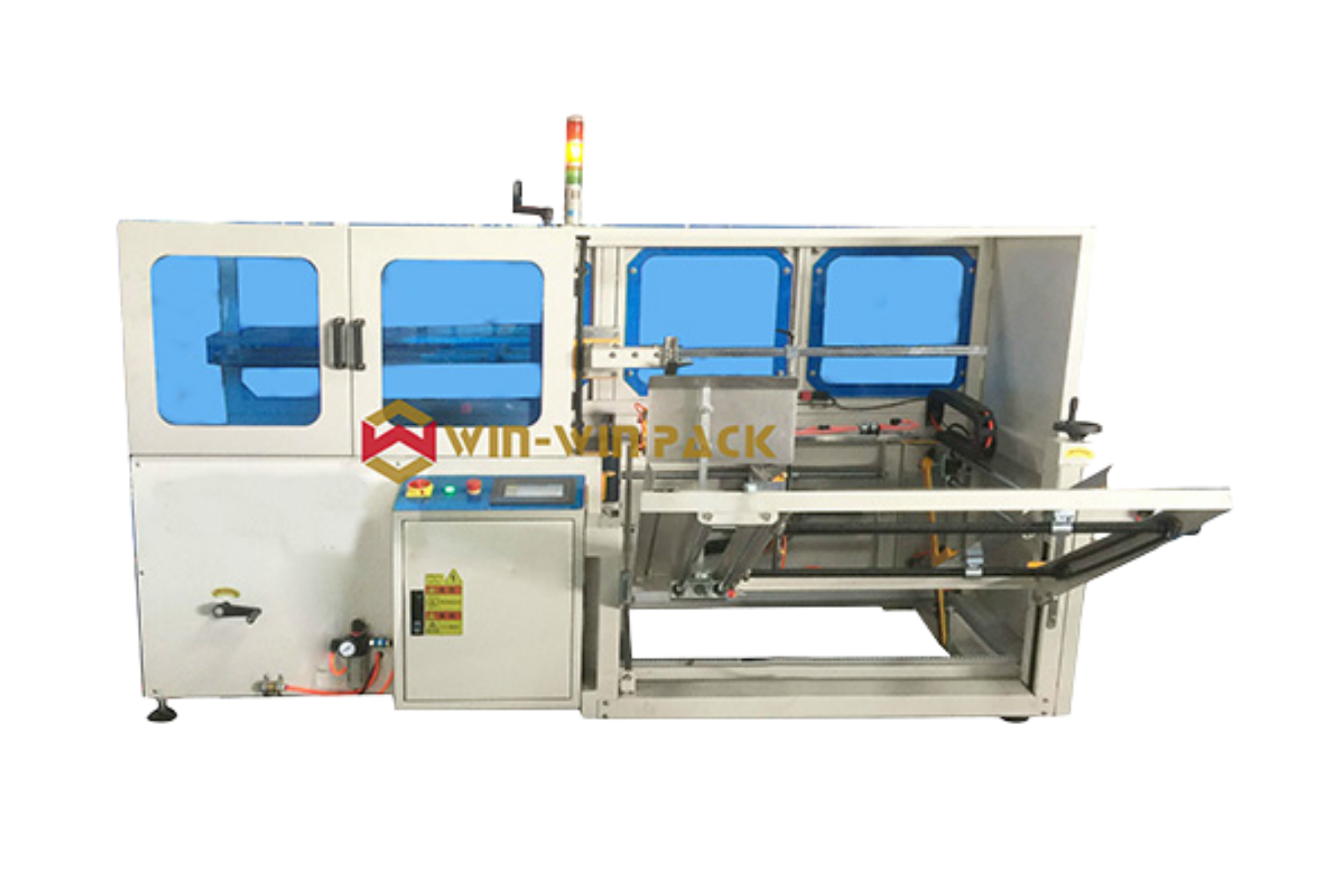

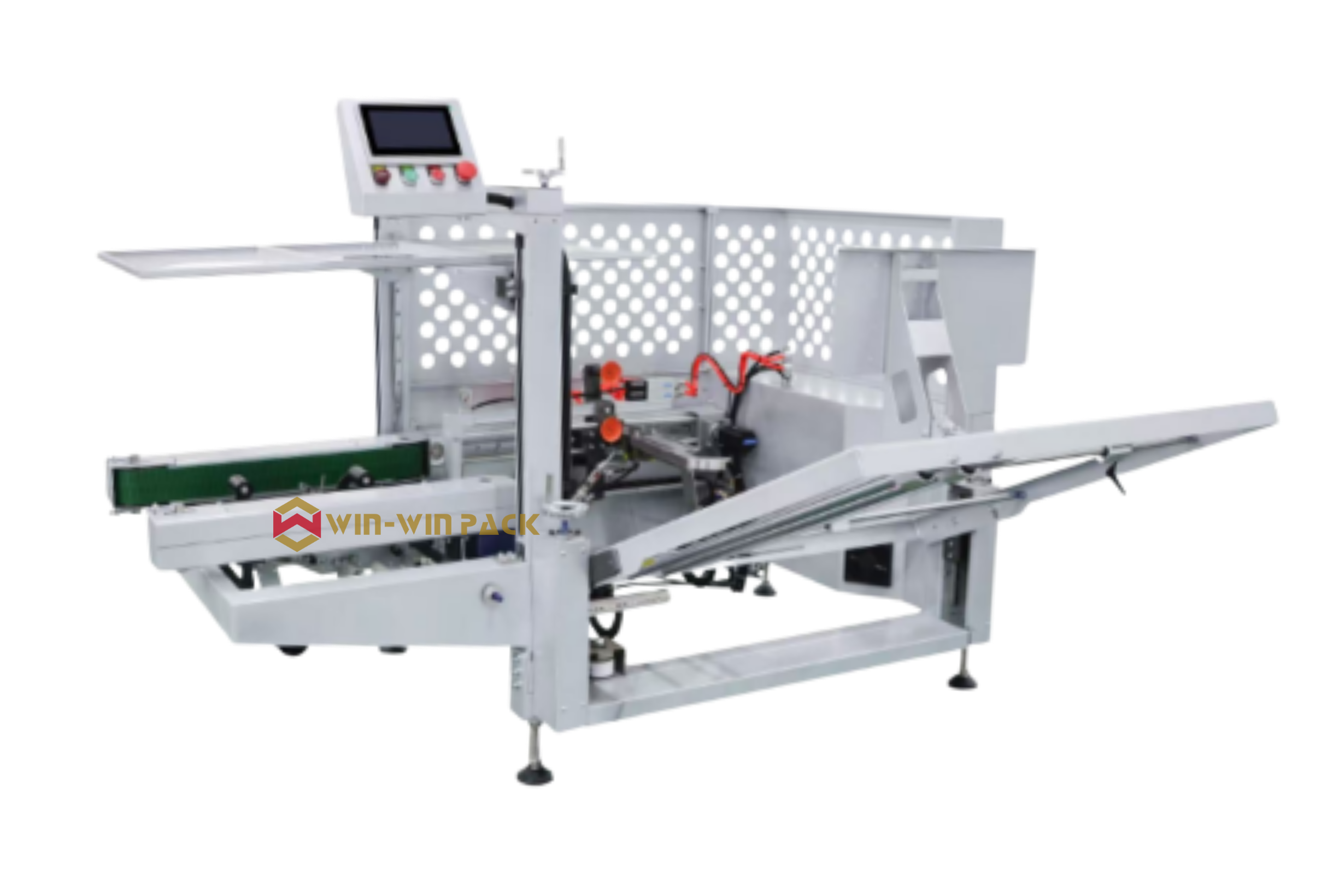

The WIN-WIN PACK vertical carton erector is tailored to those customers looking for an affordable, simple machine capable of running up to 10 cartons per minute with vertical carton handling.

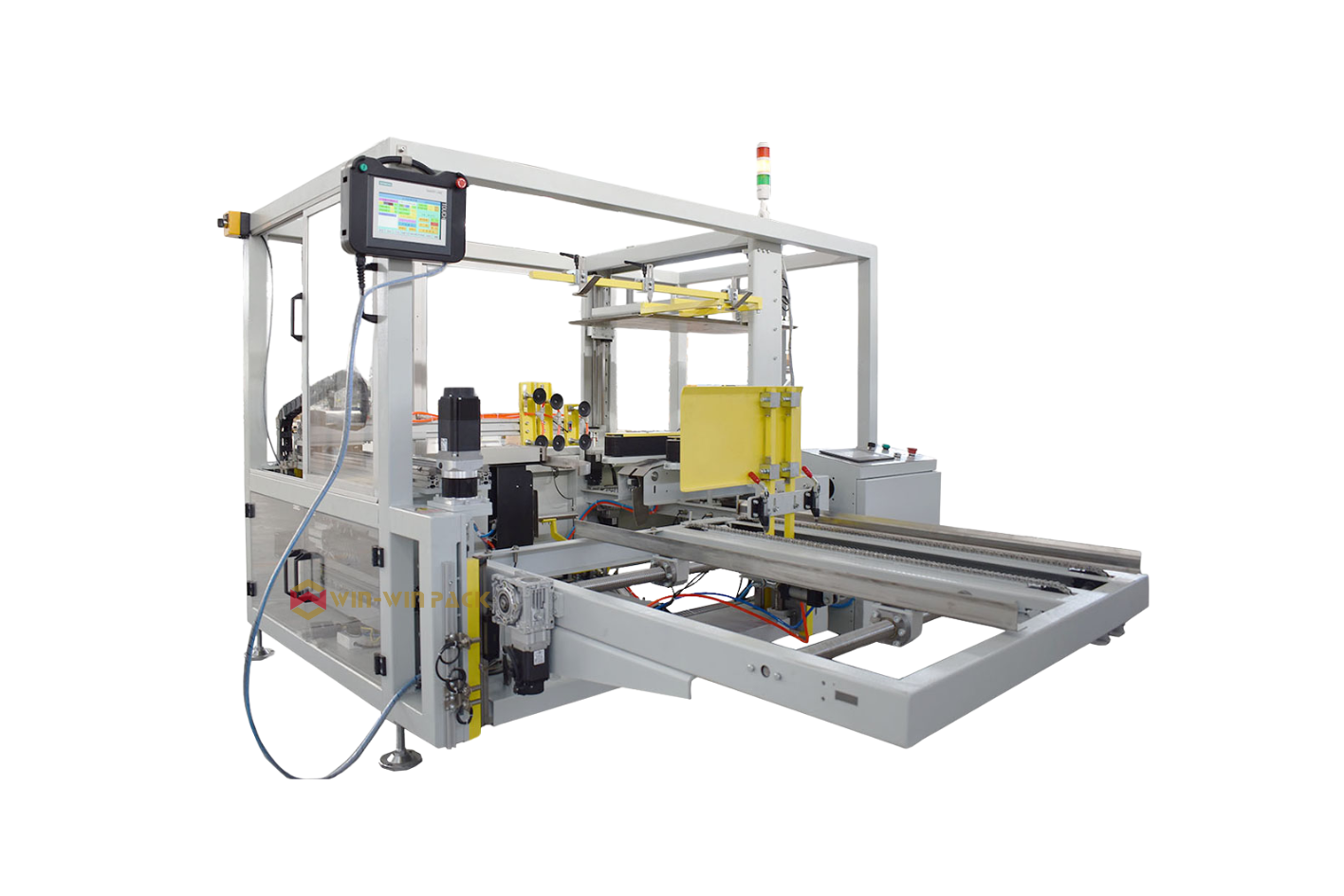

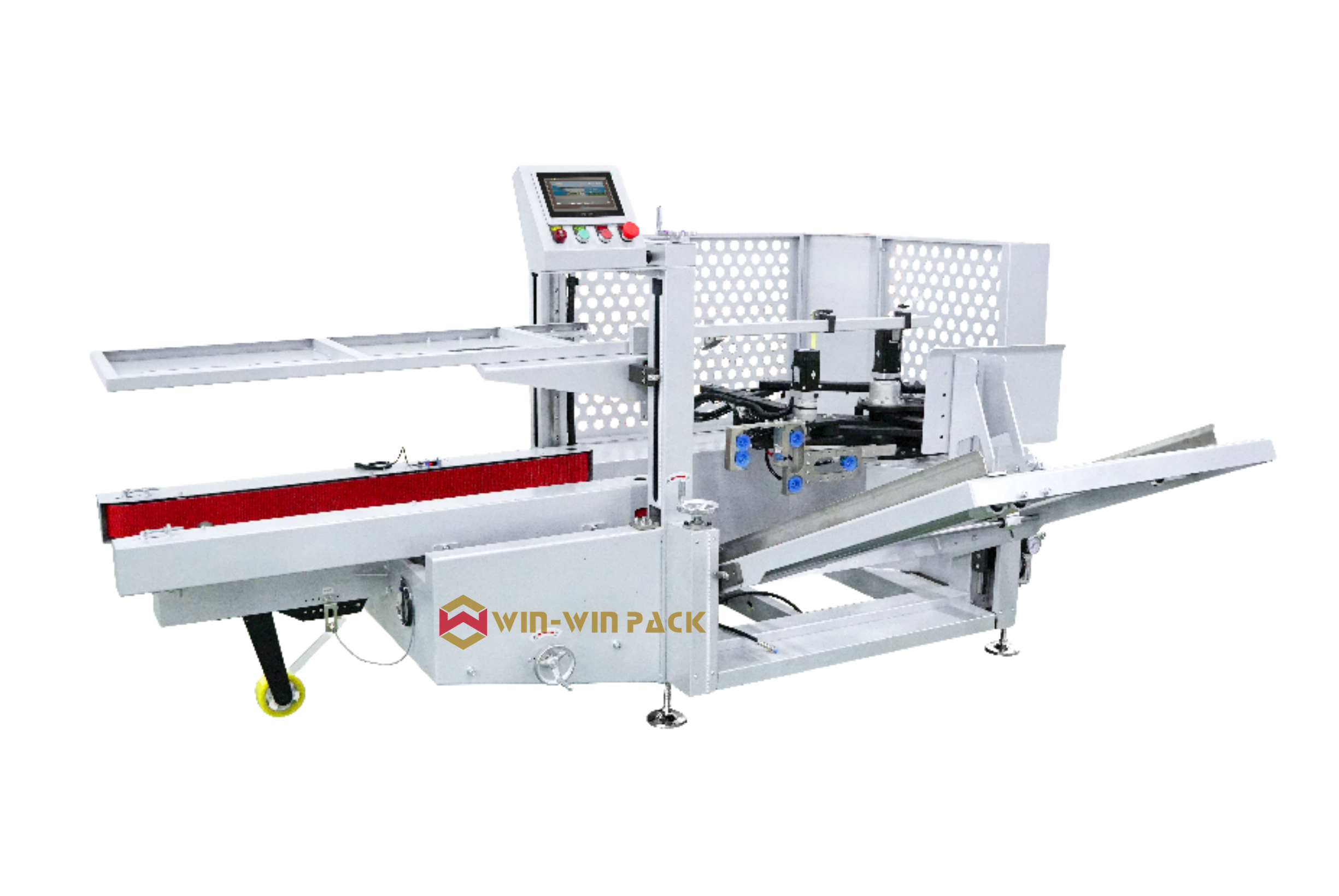

The WIN-WIN PACK automatic carton erector WWP-940FS is tailored to those customers looking for the fully automatic adjustment for different carton sizes with vertical carton handling. Affordable carton packing machine from WIN-WIN PACK.
Automatic carton erector WWP-940FS is also called case erector or case former, which are transferred from the magazine with vacuum cups and adjusted the packing range with servo motor; carton opening and all flap folding is done with mechanical devices. The all-mechanical system is extremely simple and easy to observe and troubleshoot, and PLC + screen control used is greatly facilitate the operation. Combine the automatic carton erector WWP-940FS with bag inserter, case sealer, cartoning machine, label machine, case packer to profit from a fully automatic packing line.

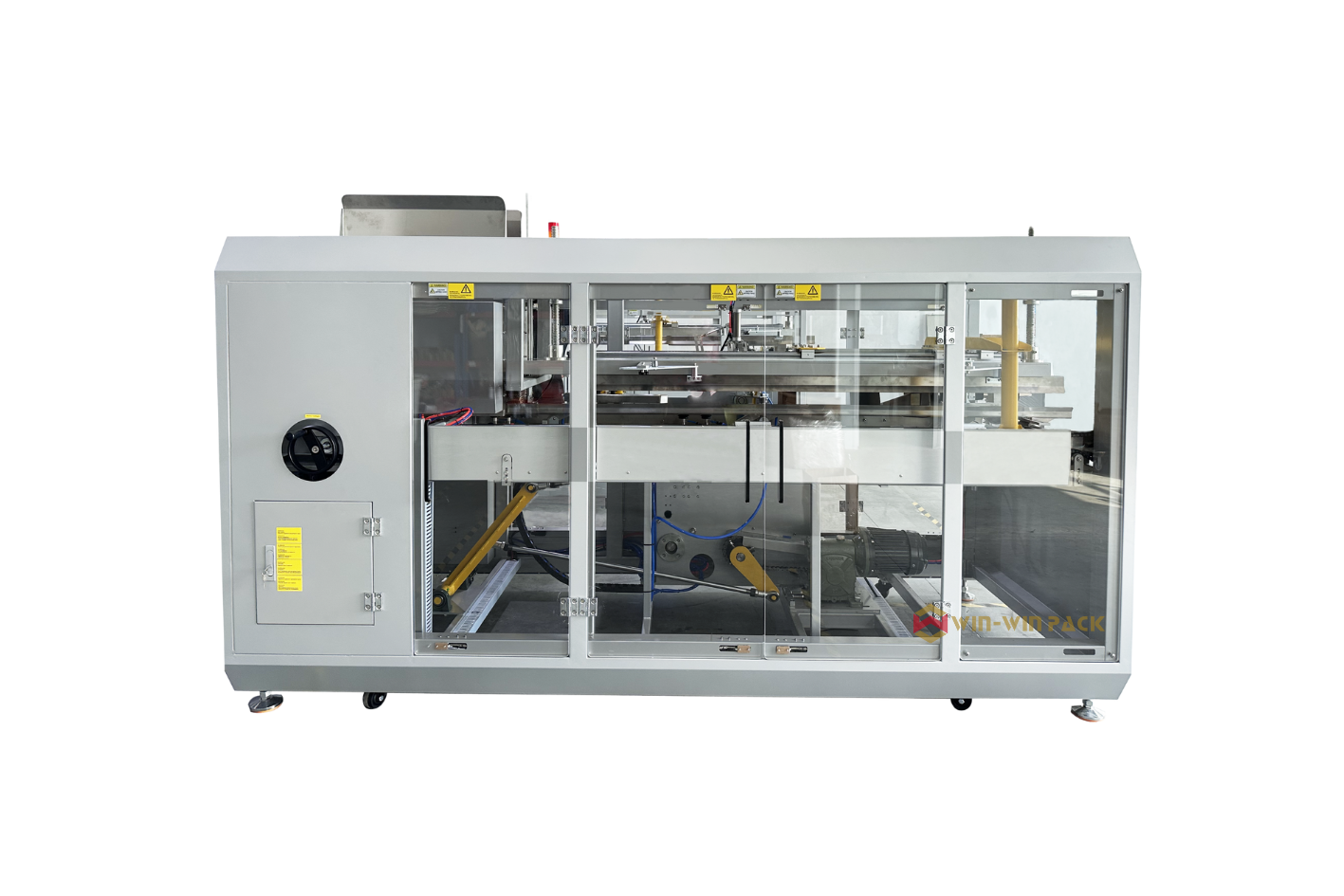

The WIN-WIN PACK horizontal carton erector is tailored to those customers looking for an high speed, small footprint and simple machine capable of running up to 30/50 cartons per minute with horizontal carton handling. And this machine is also suitable for packing square carton. Affordable carton packing machine from WIN-WIN PACK.
Horizontal carton erector is transferred from the magazine with vacuum cups; carton opening and all flap folding is done with mechanical cam devices. The all-mechanical system is extremely simple and easy to observe and troubleshoot using the slow motion / jog operation, The operator or mechanic can observe the complete case forming cycle at this slow, full function speed., and PLC + screen control is greatly facilitate the operation. Combine the Carton erector with bag inserter, case sealer, cartoning machine, label machine, case packer to profit from a fully automatic packing line.

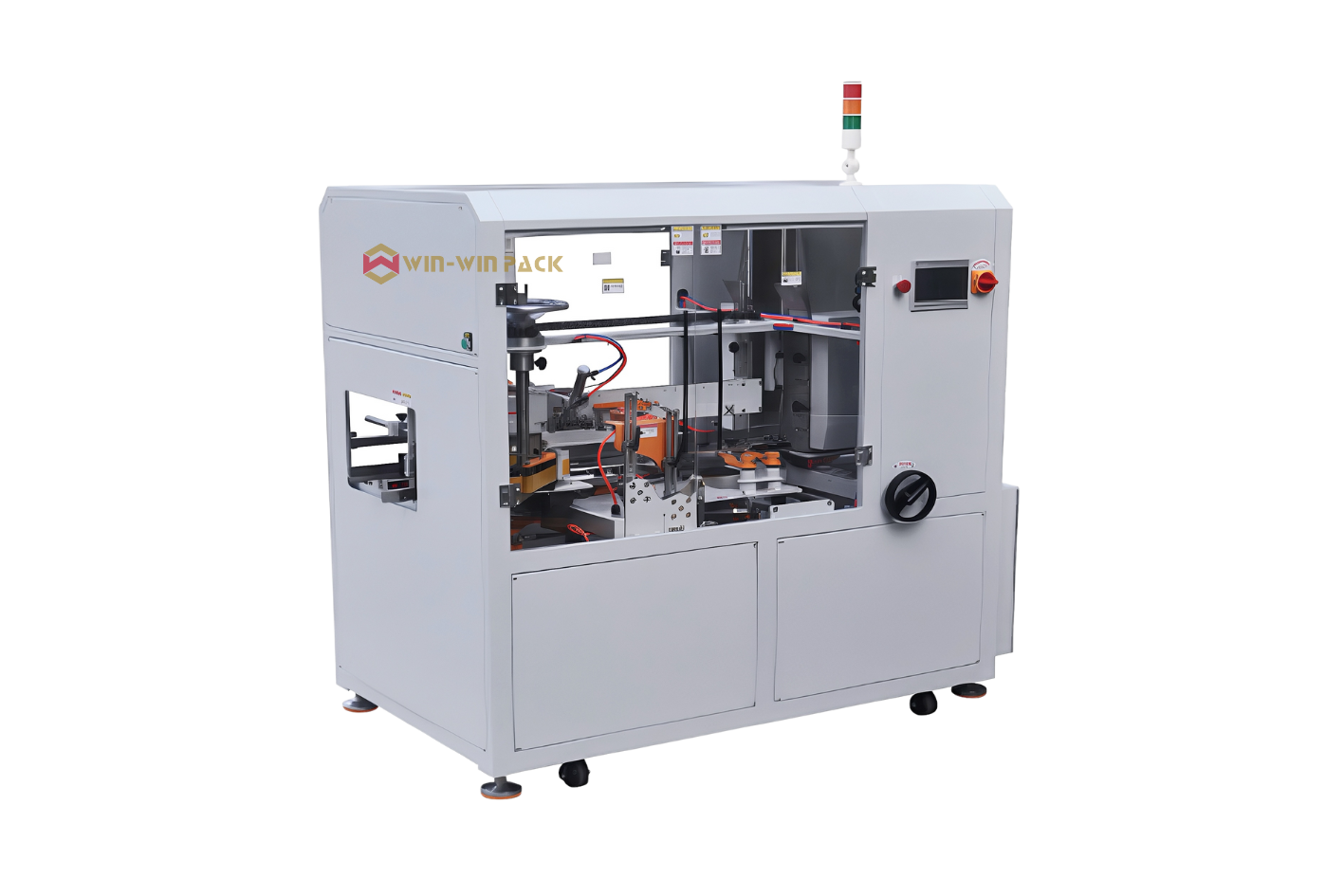

The WIN-WIN PACK high speed carton erector WWP-840H50 is tailored to those customers looking for an high speed, small footprint and simple machine capable of running up to 50 cartons per minute with vertical carton handling. Affordable carton packing machine from WIN-WIN PACK.
High speed carton erector WWP-840H50 is transferred from the magazine with vacuum cups; carton opening and all flap folding is done with mechanical cam devices. The all-mechanical system is extremely simple and easy to observe and troubleshoot using the slow motion / jog operation, The operator or mechanic can observe the complete case forming cycle at this slow, full function speed., and PLC + screen control is greatly facilitate the operation. Combine the Carton erector QL-840H50 with bag inserter, case sealer, cartoning machine, label machine, case packer to profit from a fully automatic packing line.
Horizontal carton erector for erect small carton Design for E-commerce industry. Affordable carton packing machine from WIN-WIN PACK.
High-speed carton erector adopts mechanical transmission, driven by the rotary motion or reciprocating motion of the CAM, the follower is a mechanism that stipulates reciprocating movement or oscillation (such as taking out the carton, forming the carton and folding the bottom of carton).
Specification：
1 Imported parts, electrical and pneumatic components
2 Automatically adjust the height and the width for different size of cartons;
3 Advanced pneumatic control system compare with the complicated electrical control system
4 Side belts driven; top and bottom sealing
5 Cutter Safety system to prevent hands form stabbed by the cutter
6 Both steel and stainless steel types
7 Universal type, fit for all kinds of cartons sealing

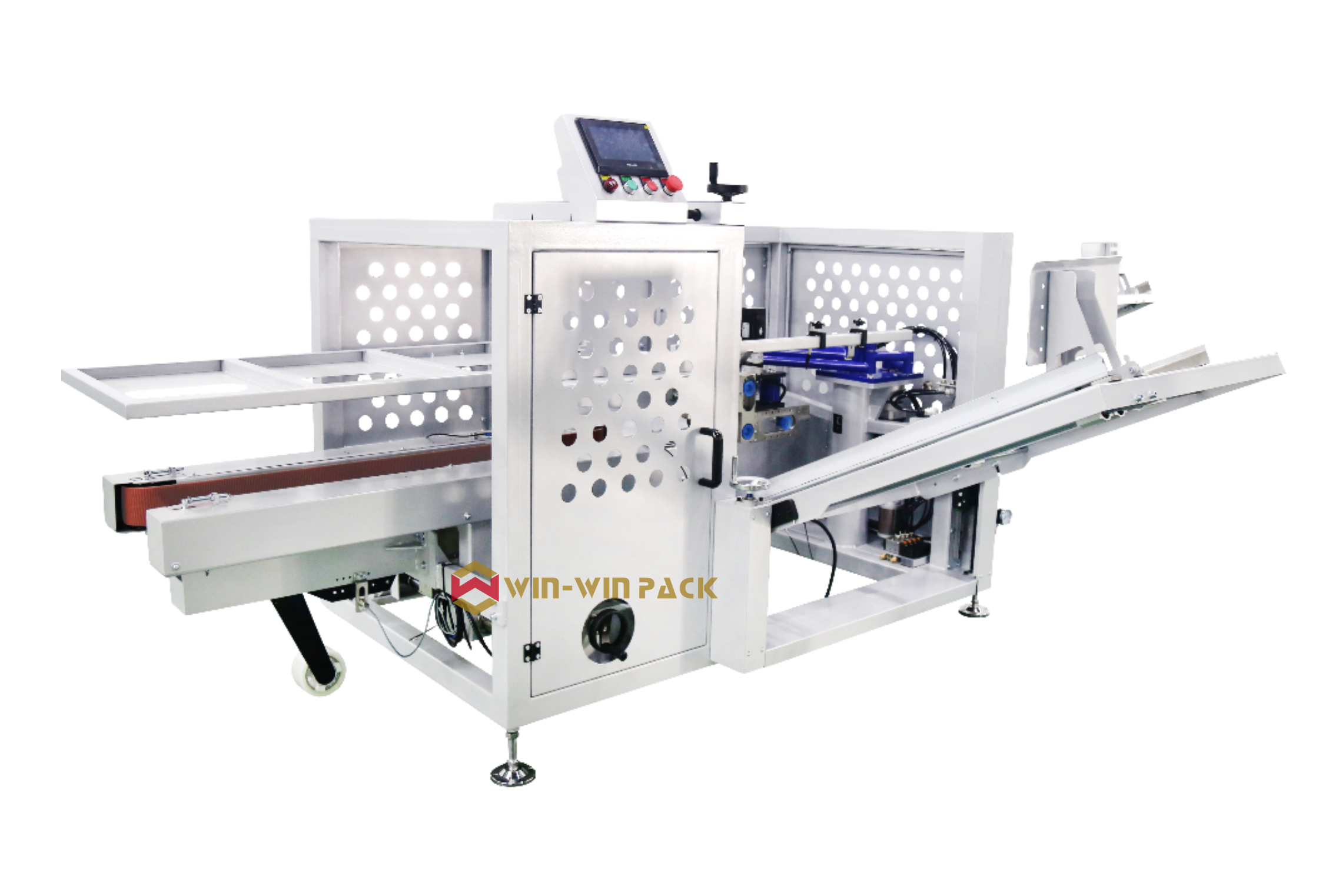

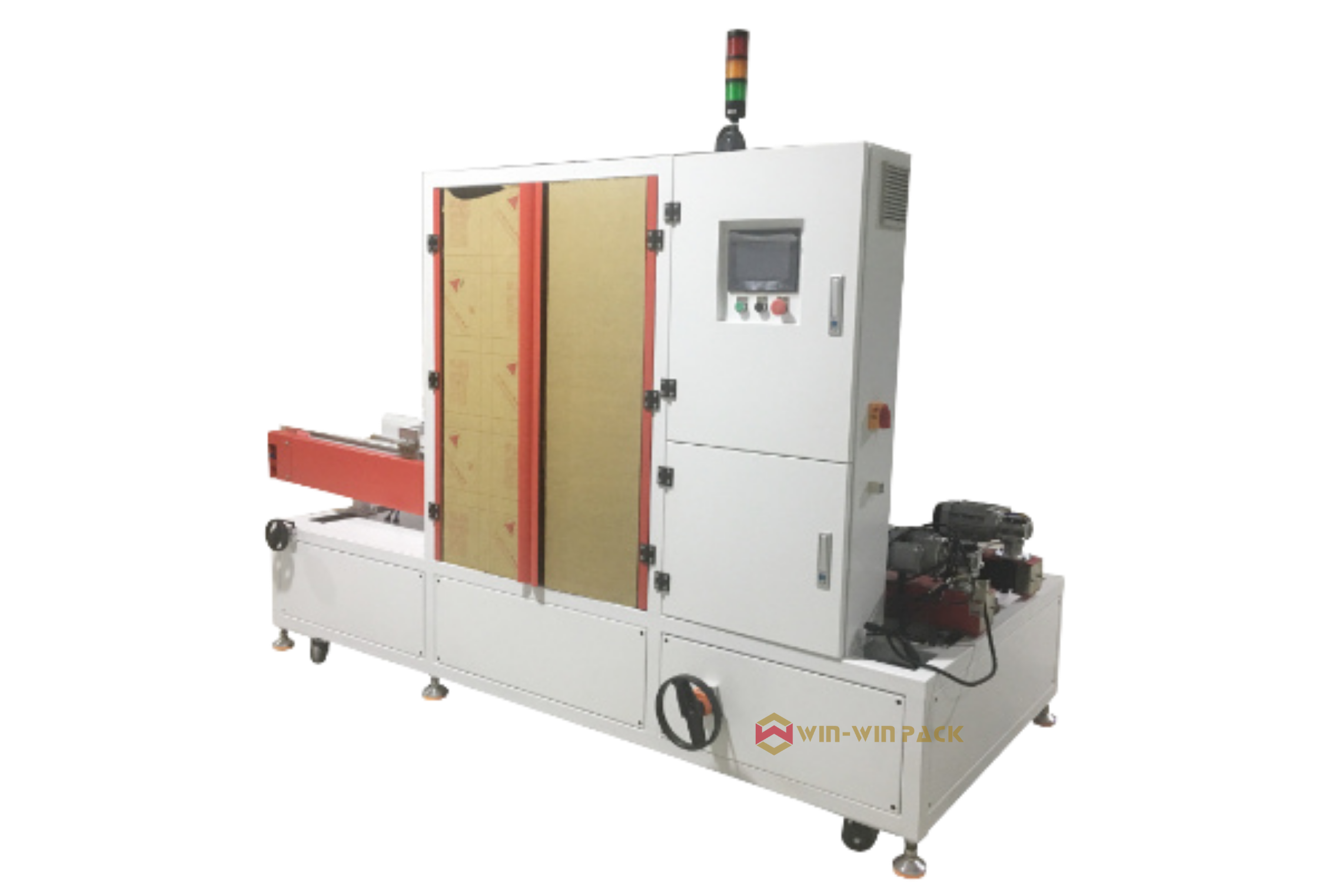

The WIN-WIN PACK carton erector WWP-945H15 has an unpacking capacity of 12-15 cartons per minute, which is a speed that other vertical carton erectors with sealing the bottom cannot achieve. Affordable carton packing machine from WIN-WIN PACK.
The machine adopts the straight-line vertical feeding, which not only effectively increases the storage capacity of the carton, but also reduces the floor space, and reduces the frequency and labor intensity of workers.It can automatically complete unpacking, automatically fold the lower cover, and automatically seal the bottom of the carton, and adopts PLC+ human-machine interface control. It is easy to operate, simple to maintain and stable in performance.
Since its successful research and development, it has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries. It can be said that it is an indispensable assembly line equipment for automated large-scale production.
